Antitheft and Alarm Systems
>>
Part 5 of 5
Part 5 of 5

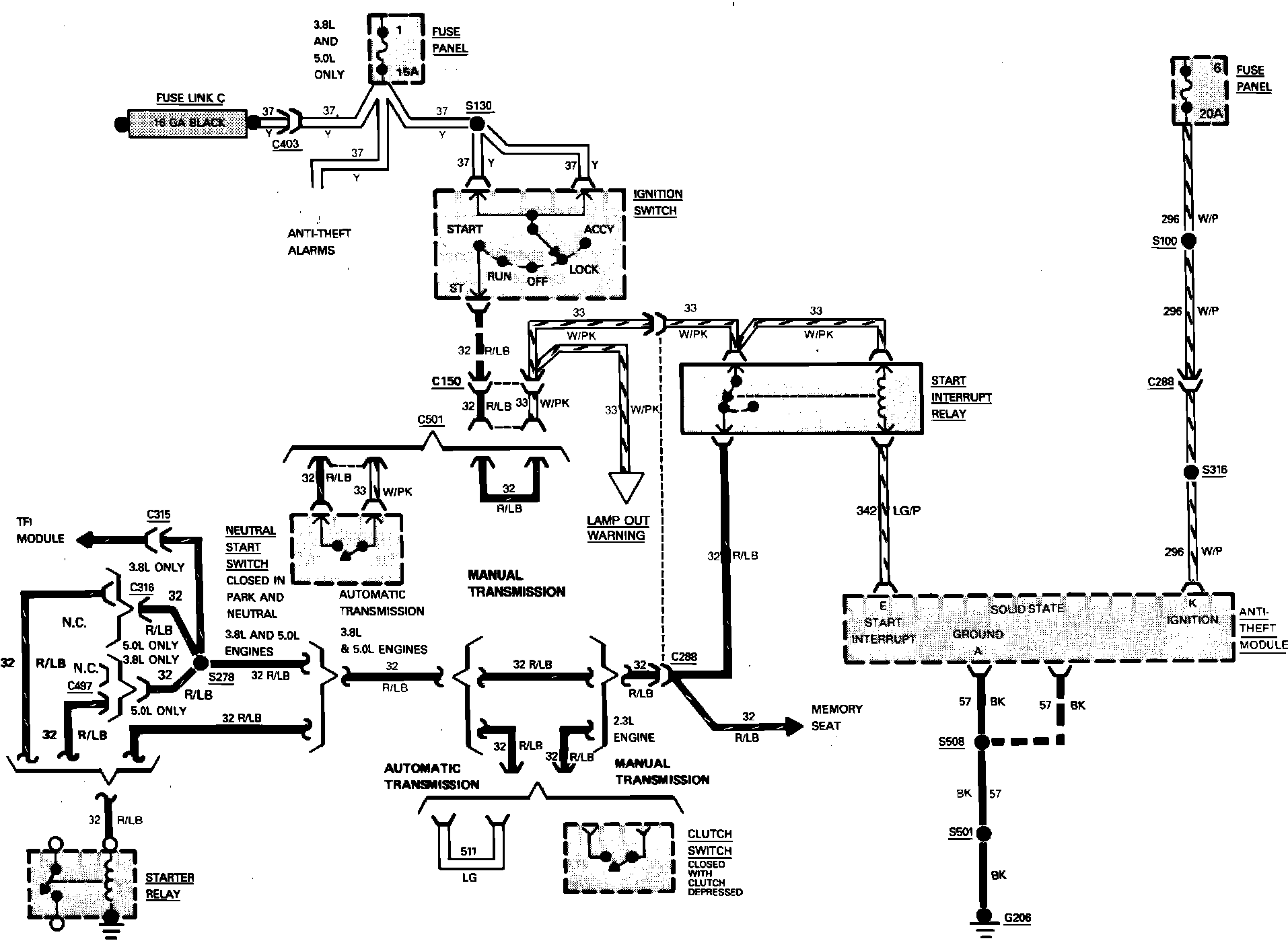

Fig. 9 Anti-Theft Wiring Circuit (Part 5 of 5):
