Home >> Mercury >> 1987 >> Colony Park V8-302 5.0L VIN F FI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Charging System >> System Diagram

System Diagram

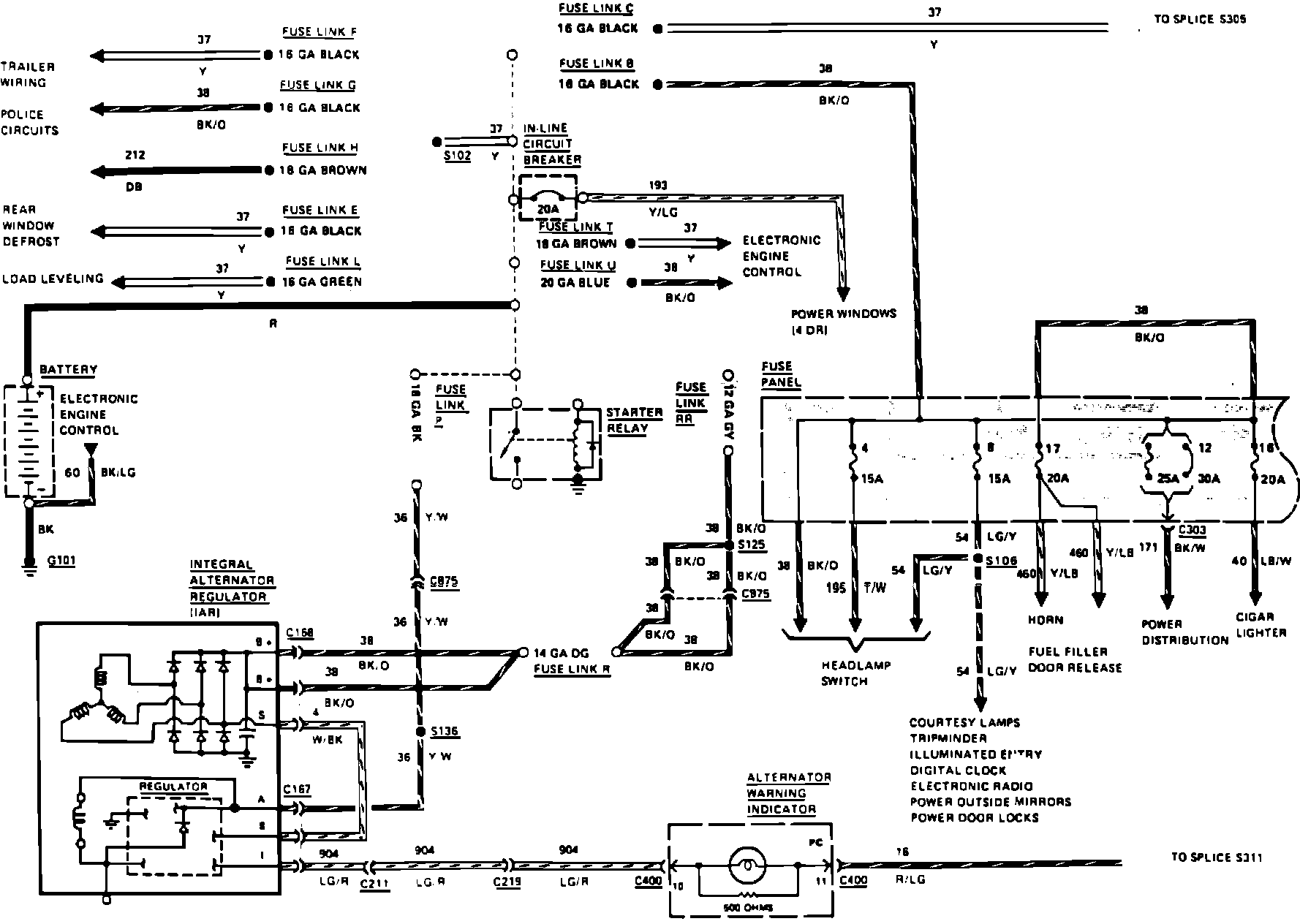

Fig. 10 Charging System & Power Distribution (Part 1 of 3):
