Air Cleaner Cold Weather Modulator

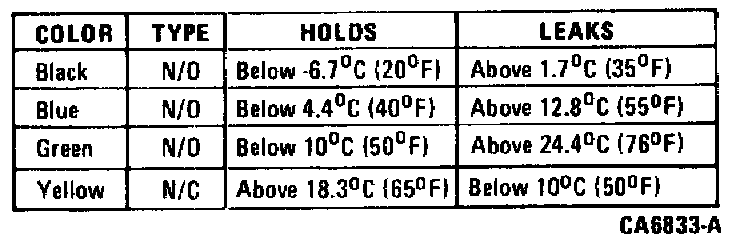

A 54 kPa (16 inches Hg) vacuum applied to motor side of the modulator holds or leaks as follows:
