Headlamp
>>
Headlamp Control Module
Headlamp Control Module

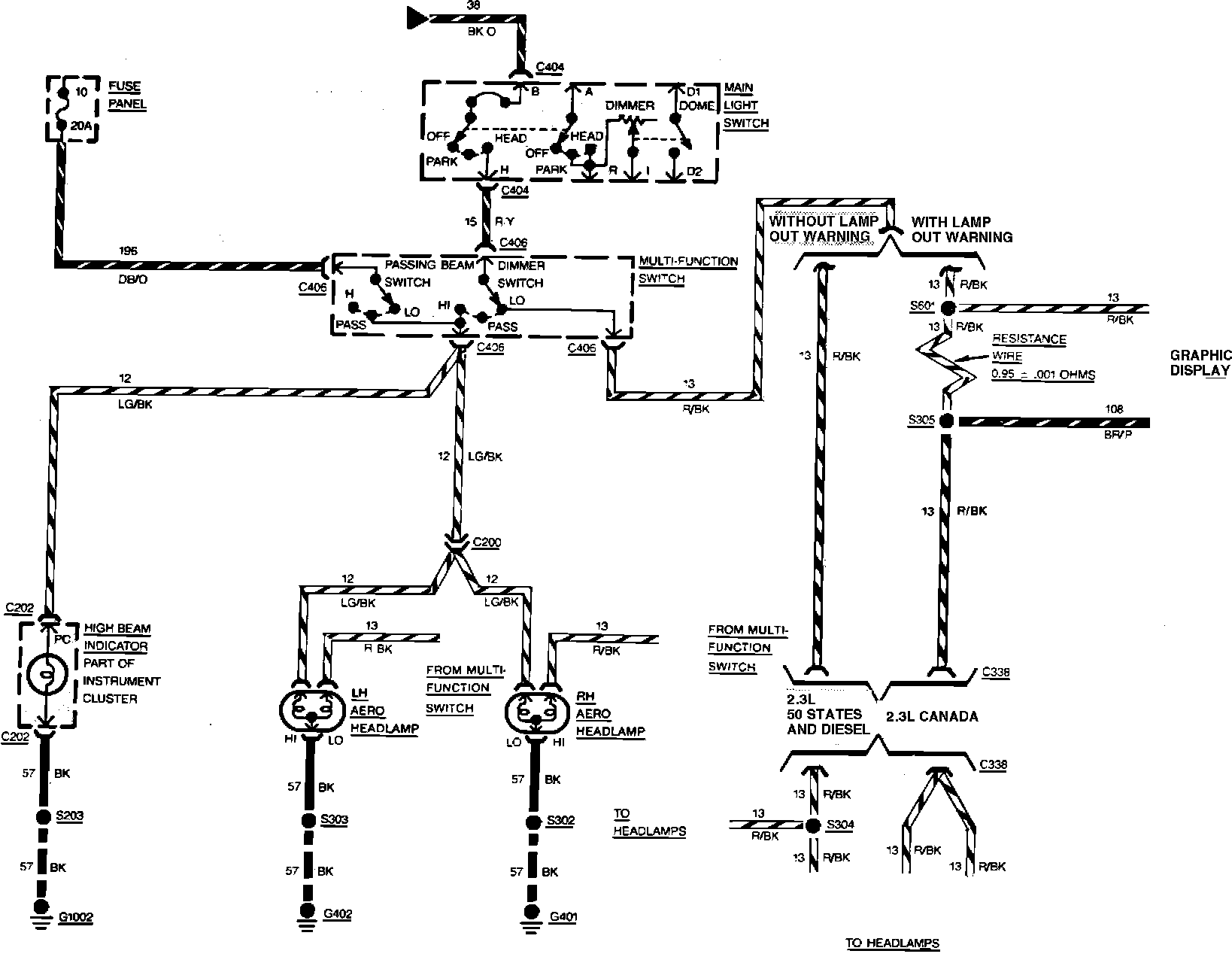

Fig. 15 Headlamp Wiring Circuit. Tempo & Topaz:
