Mercury
>>
1986
>>
Topaz L4-122 2.0L DSL
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Seats
Seats

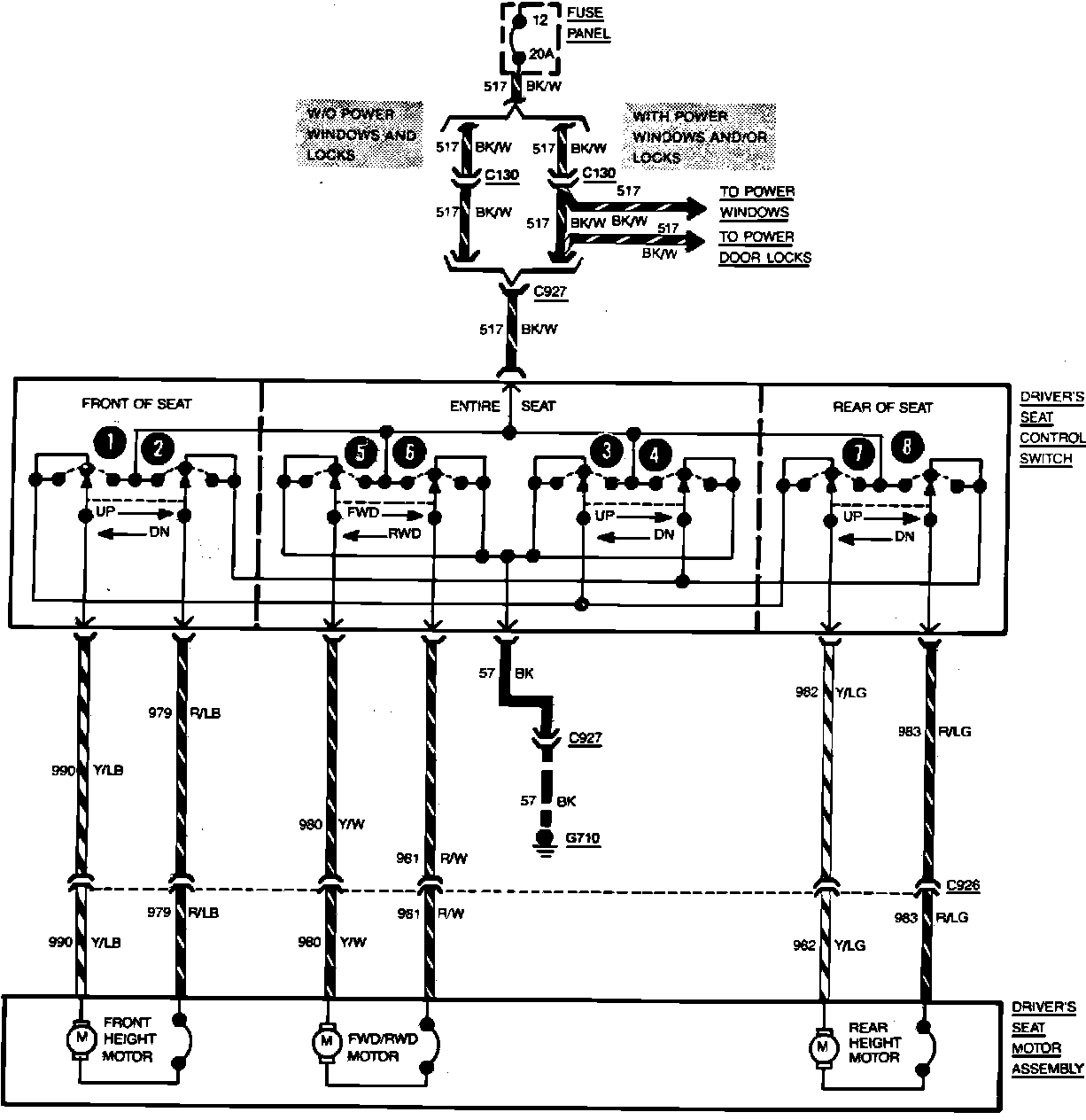

Fig. 45 Power Seat Wiring Circuit. Tempo & Topaz:
