Mercury
>>
1986
>>
Sable V6-182 3.0L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Pinpoint Tests
>>
X - Integrated Relay Control Module
>>
X - Wiring Diagram
X - Wiring Diagram

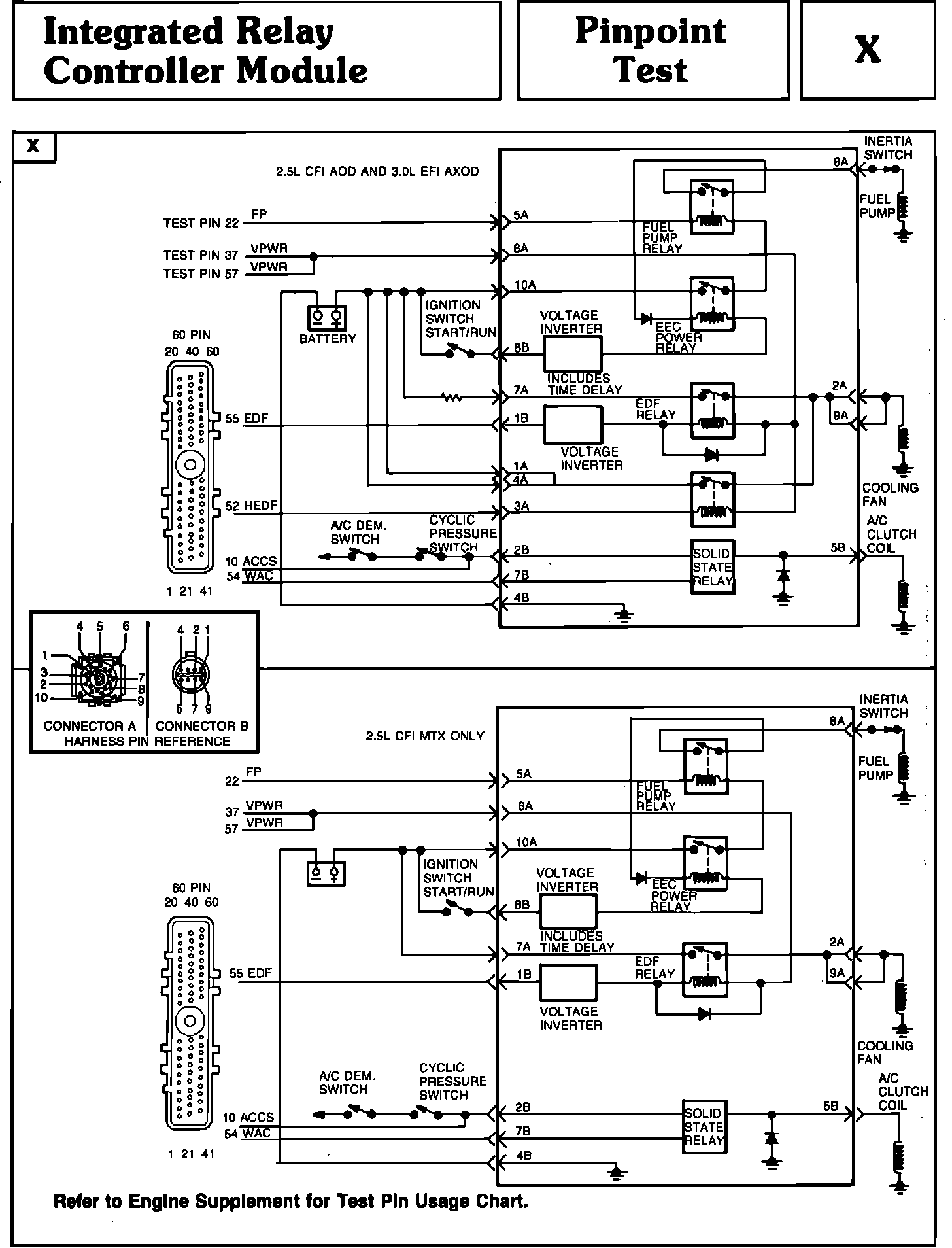

Pinpoint Test Schematic:
