Mercury
>>
1986
>>
Sable L4-153 2.5L HSC
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Power Distribution
>>
Fuse 18
Fuse 18

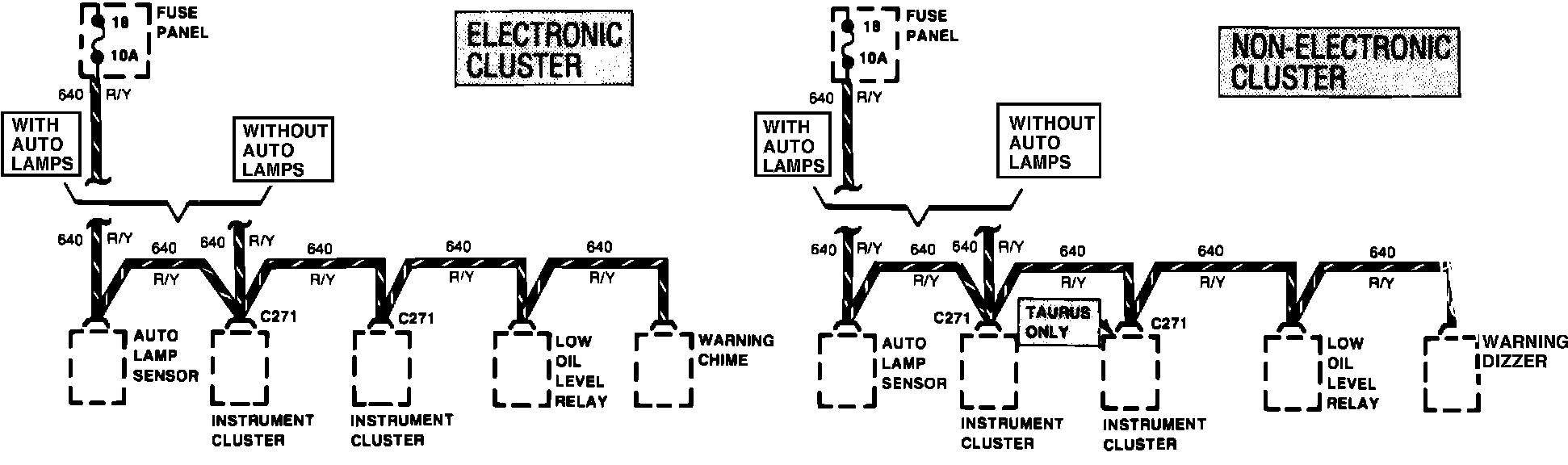

Fig. 52 Power Distribution Wiring Circuit (Fuse 18):
