Electrical Diagrams

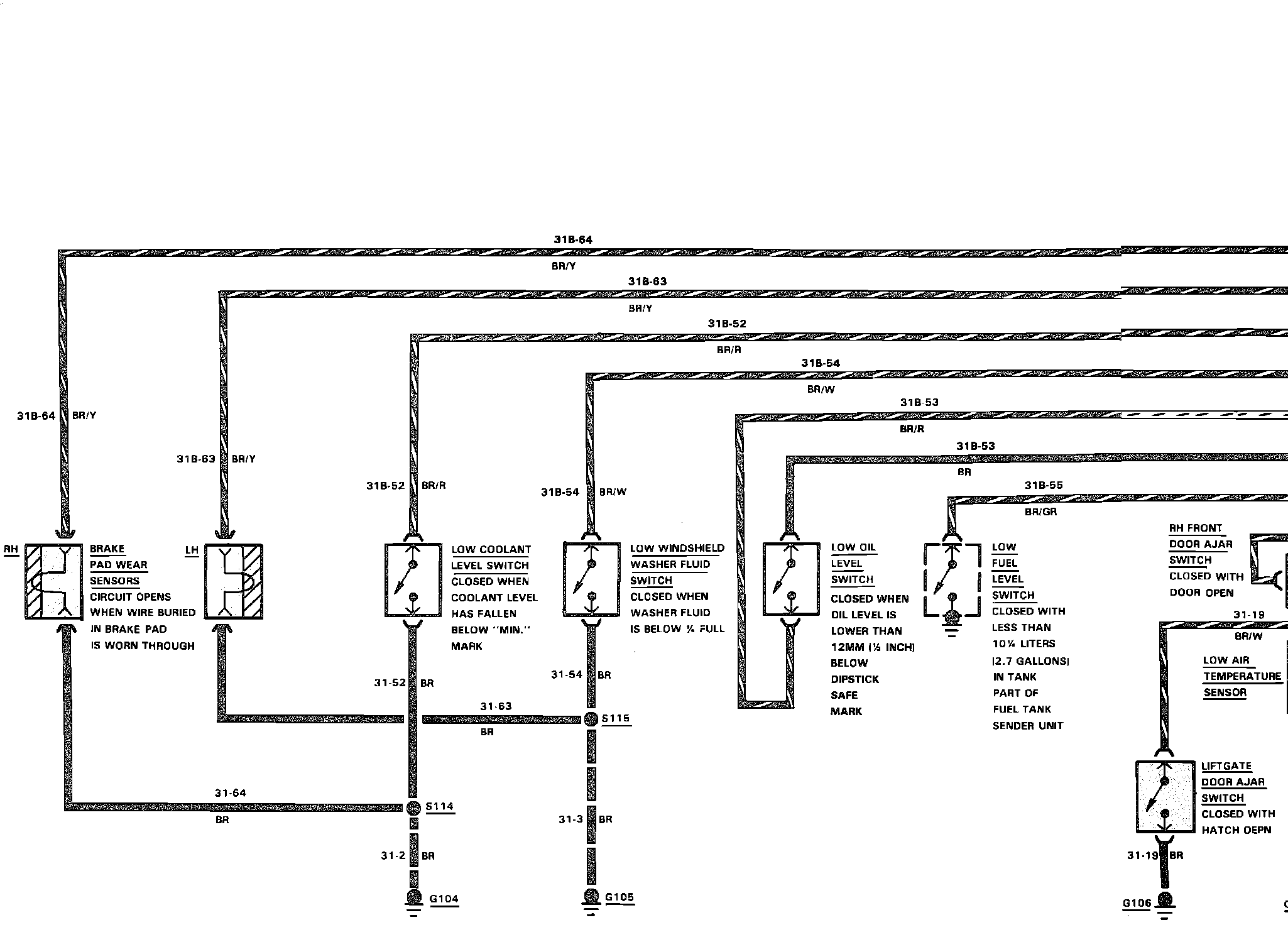

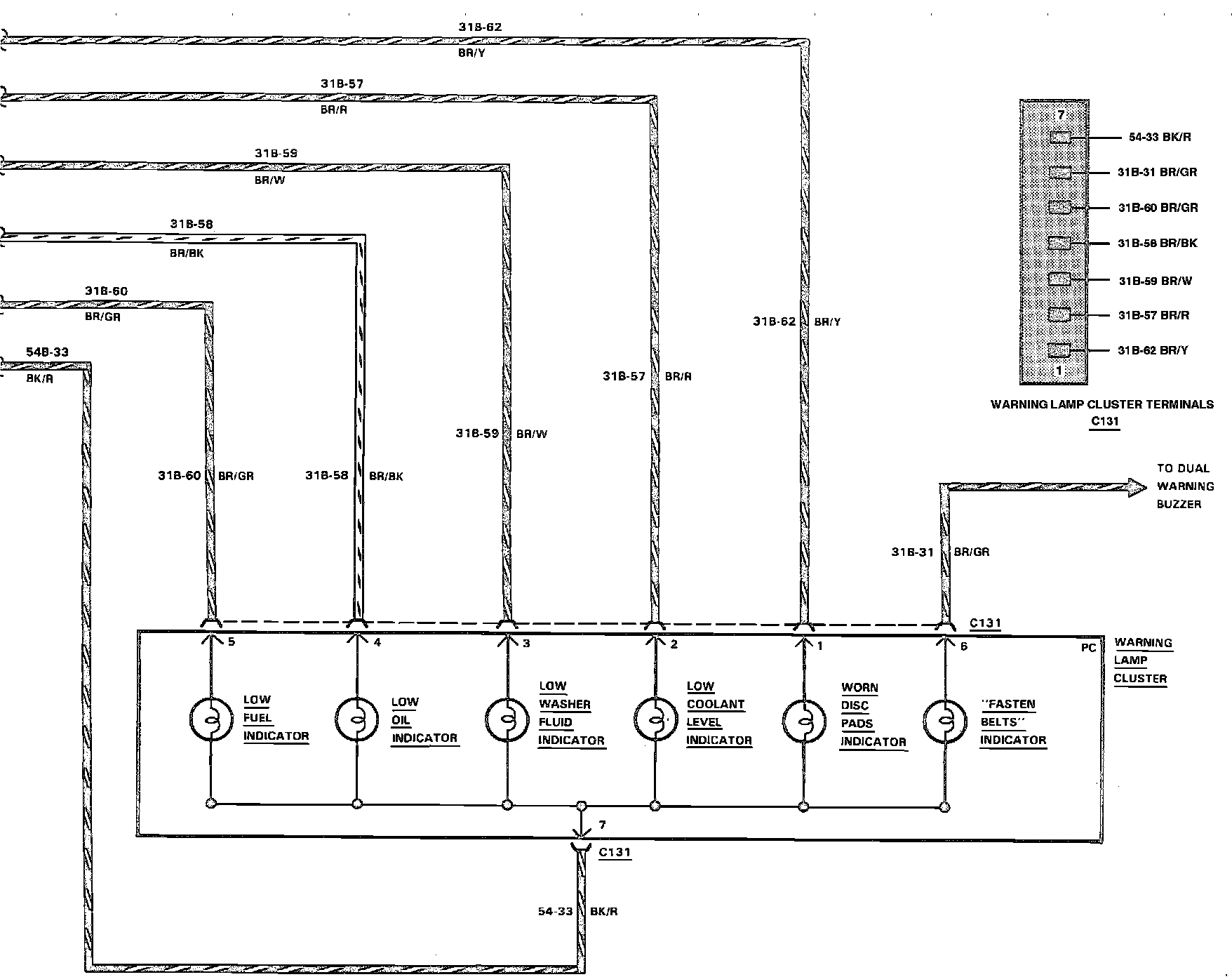

2oWarning Indicator (Auxiliary Indicators):
Warning Indicator (Auxiliary Indicators):
