Less Intermittent Wipers

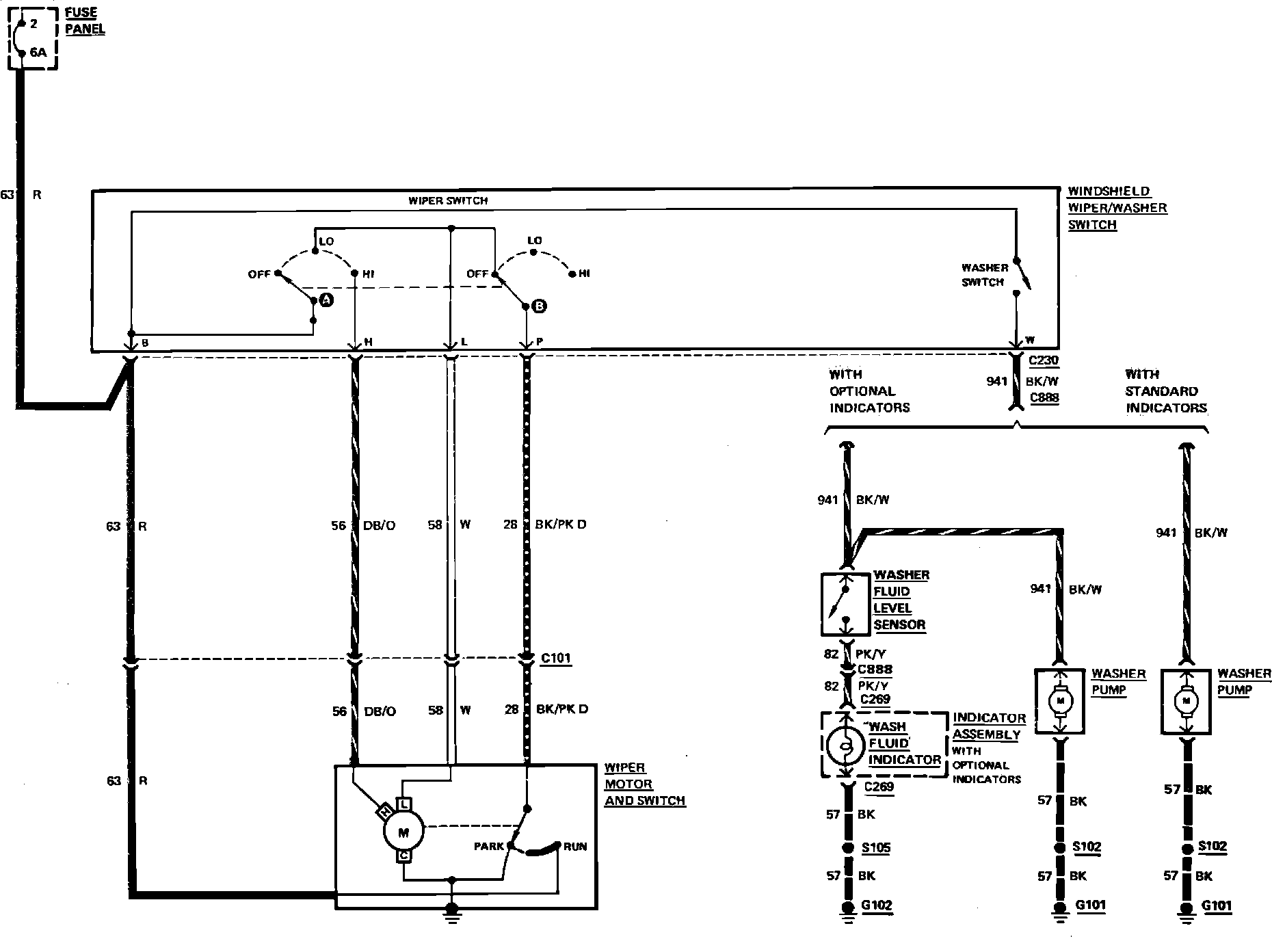

Fig. 38 Windshield Wiper/Washer Wiring Circuit. LTD & Marquis W/Standard Wipers:
