Power Trunk / Liftgate Lock Switch
Power Trunk / Liftgate Lock Switch

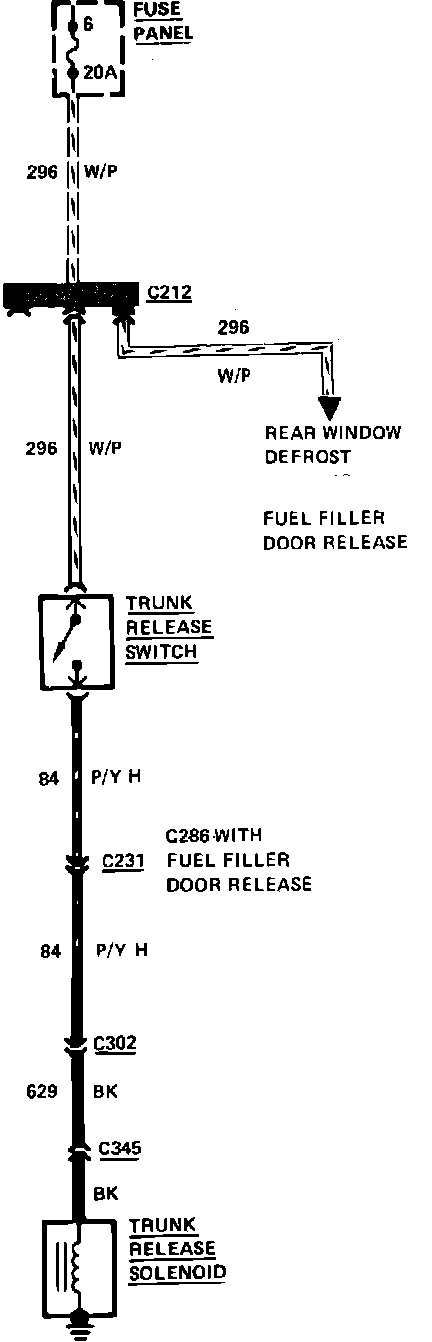

Fig. 44 Trunk Release Wiring Circuit. LTD & Marquis:
