Home >> Mercury >> 1986 >> Marquis L4-140 2.3L VIN A 1-bbl >> Repair and Diagnosis >> Brakes and Traction Control >> Diagrams

Brakes and Traction Control: Diagrams

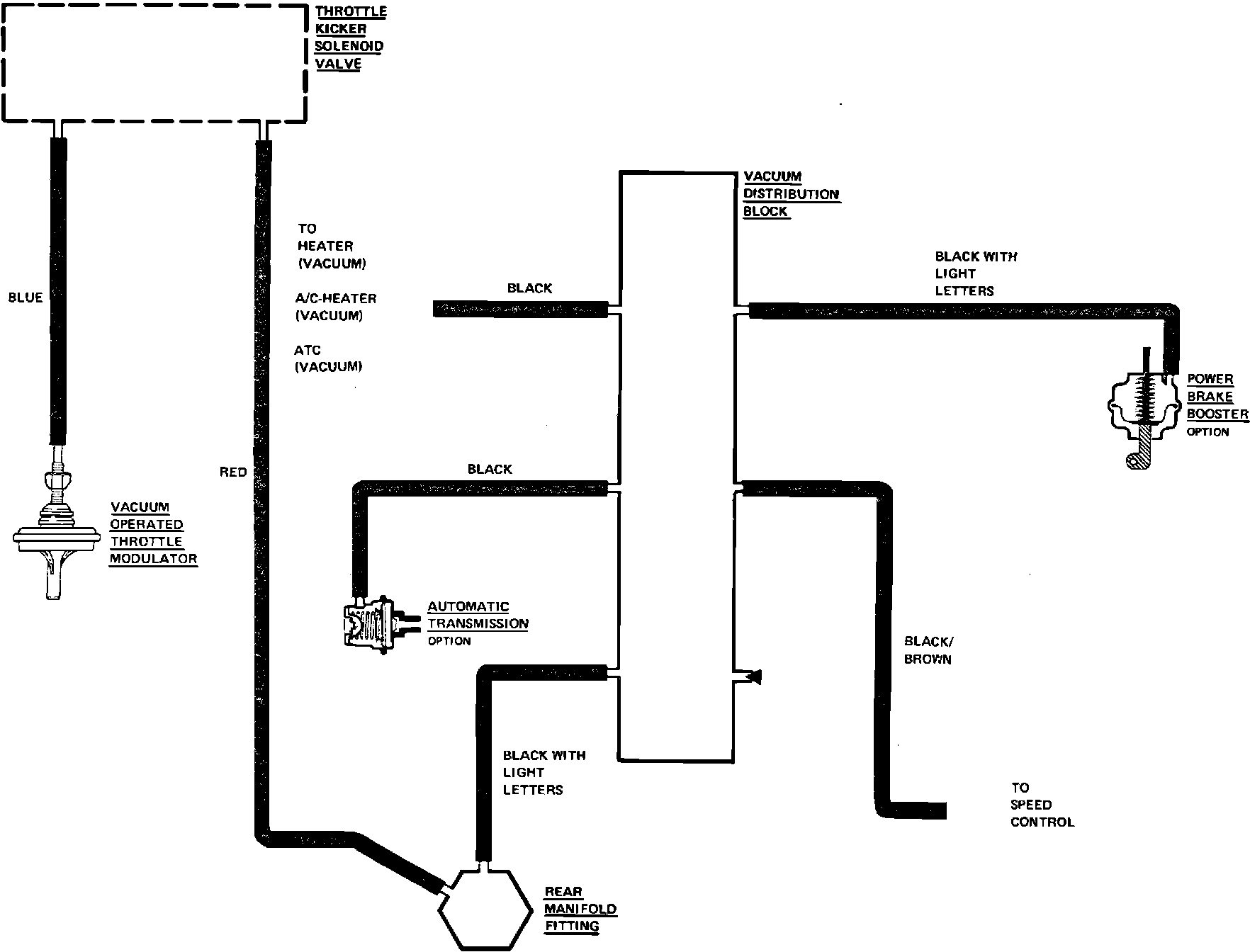

Fig. 35 Vacuum Distribution Circuit. LTD & Marquis:
