Mercury
>>
1986
>>
Grand Marquis V8-351 5.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Lighting and Horns
>>
Exterior Lighting Module
>>
Wagon
Wagon

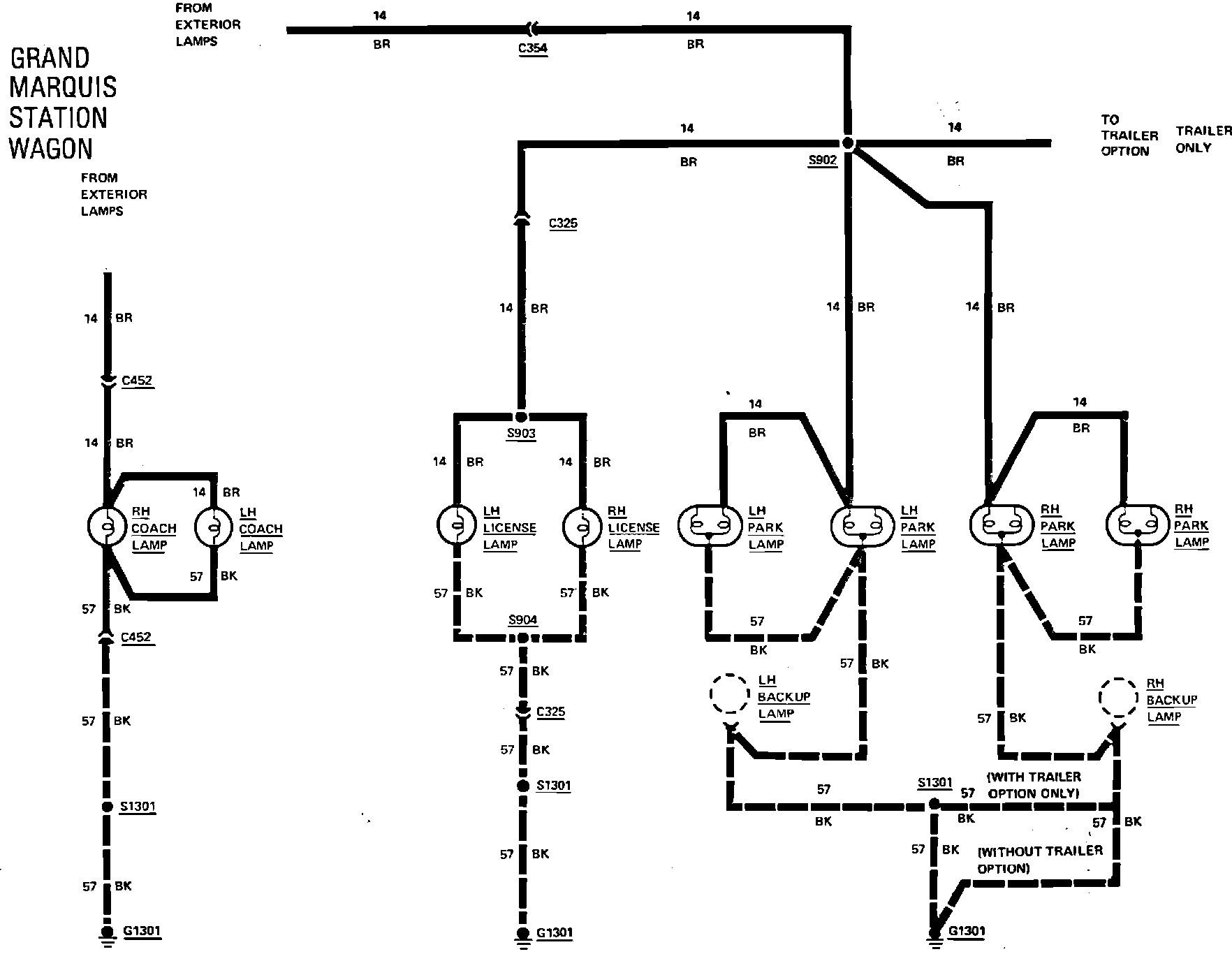

Fig. 59 Rear Exterior Lamps Wiring Circuit. Grand Marquis Wagon:
