Home >> Mercury >> 1984 >> Marquis L4-140 2.3L VIN A 2-bbl >> Repair and Diagnosis >> Brakes and Traction Control >> Diagrams

Brakes and Traction Control: Diagrams

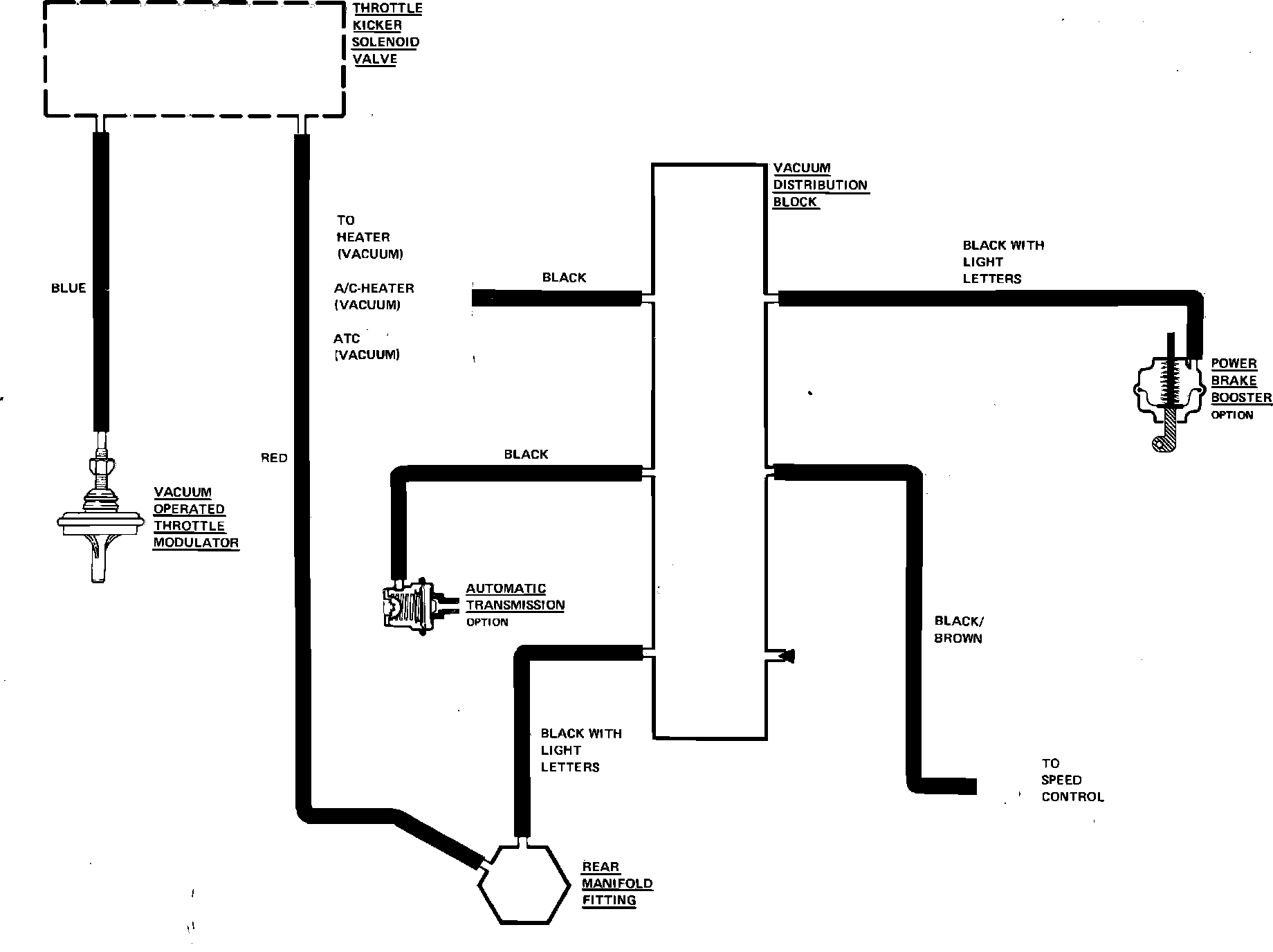

Fig. 2 Vacuum Distribution. 1983-84 LTD & Marquis:
