Mercury
>>
1984
>>
Grand Marquis V8-302 5.0L VIN F TBI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Trunk / Liftgate
>>
Power Trunk / Liftgate Lock Switch
Power Trunk / Liftgate Lock Switch

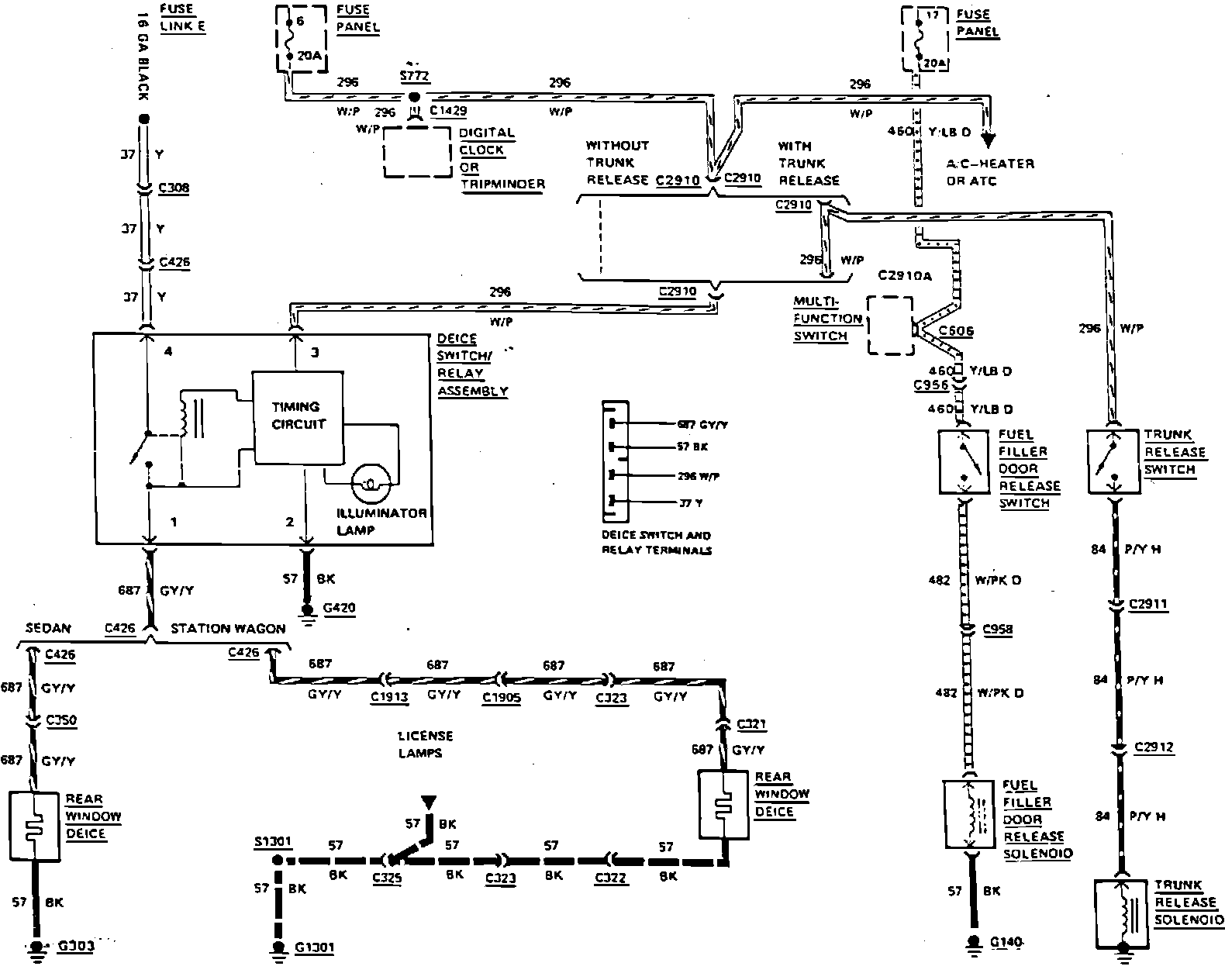

Fig. 63 Rear De-Ice, Trunk Release & Fuel Filler Door Release Wiring Circuit. 1984 Crown Victoria & Grand Marquis:
