EEC-IV System Component Location
EEC-IV System Component Location

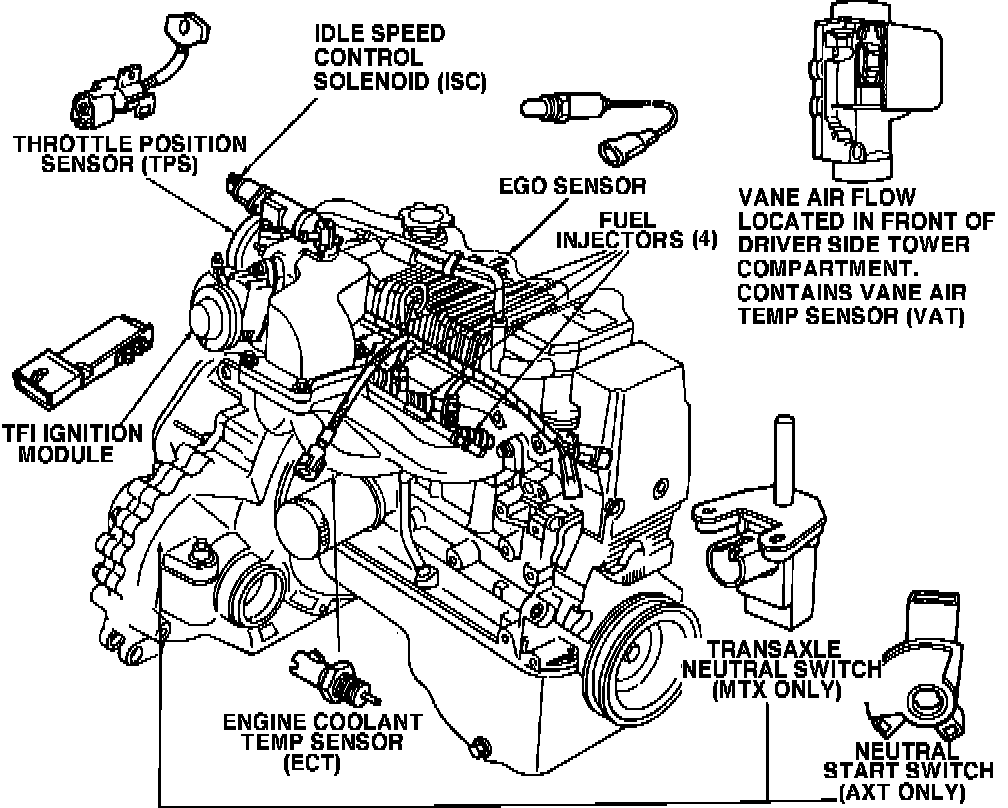

Fig. 2 EEC-IV system component location (Part 1 of 2):
