Mercury
>>
1984
>>
Cougar/XR7 L4-140 2.3L SOHC Turbo
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Pinpoint Tests
>>
KT - Idle Speed Control (Throttle Kicker)
>>

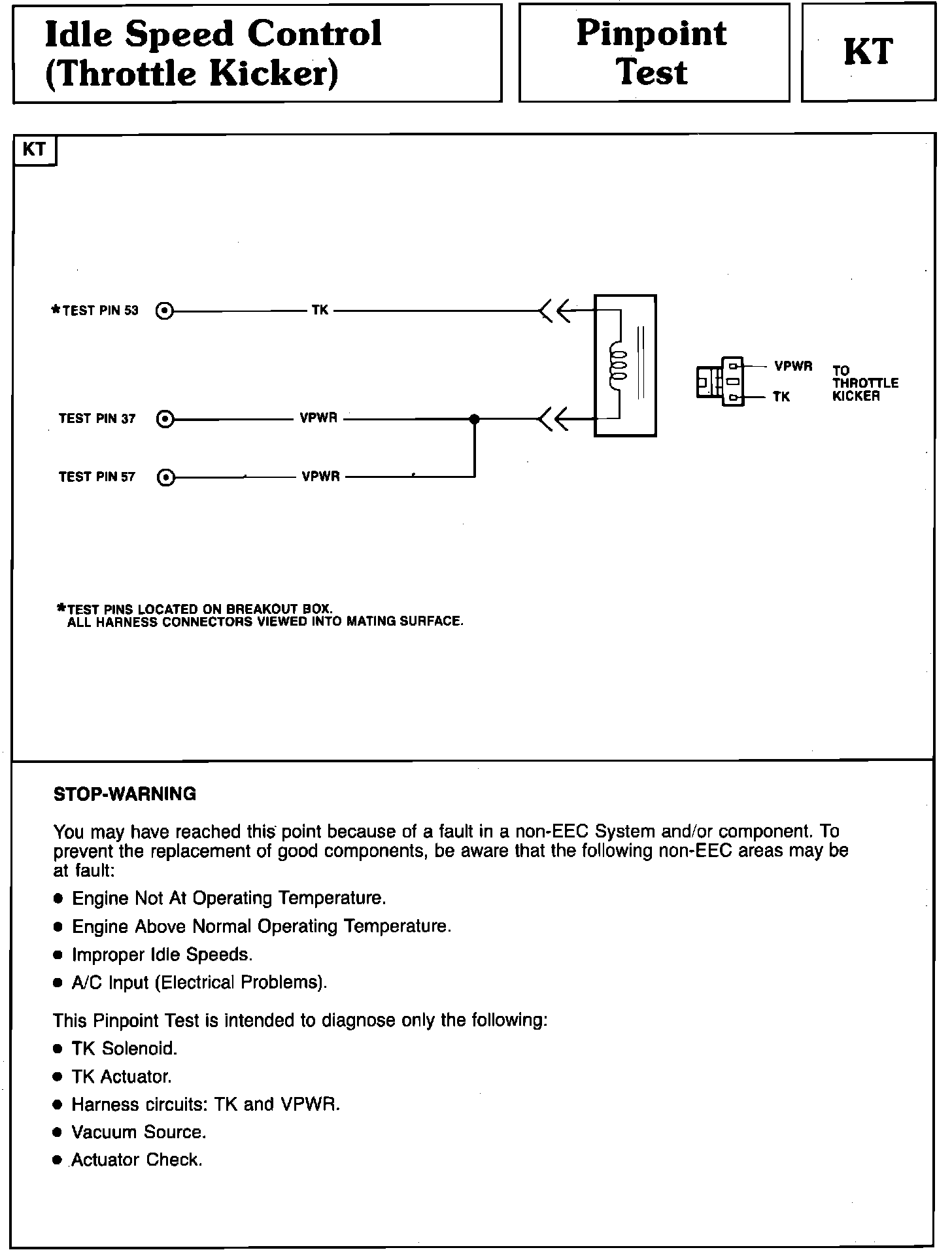

KT - Wiring Diagram
KT - Wiring Diagram
