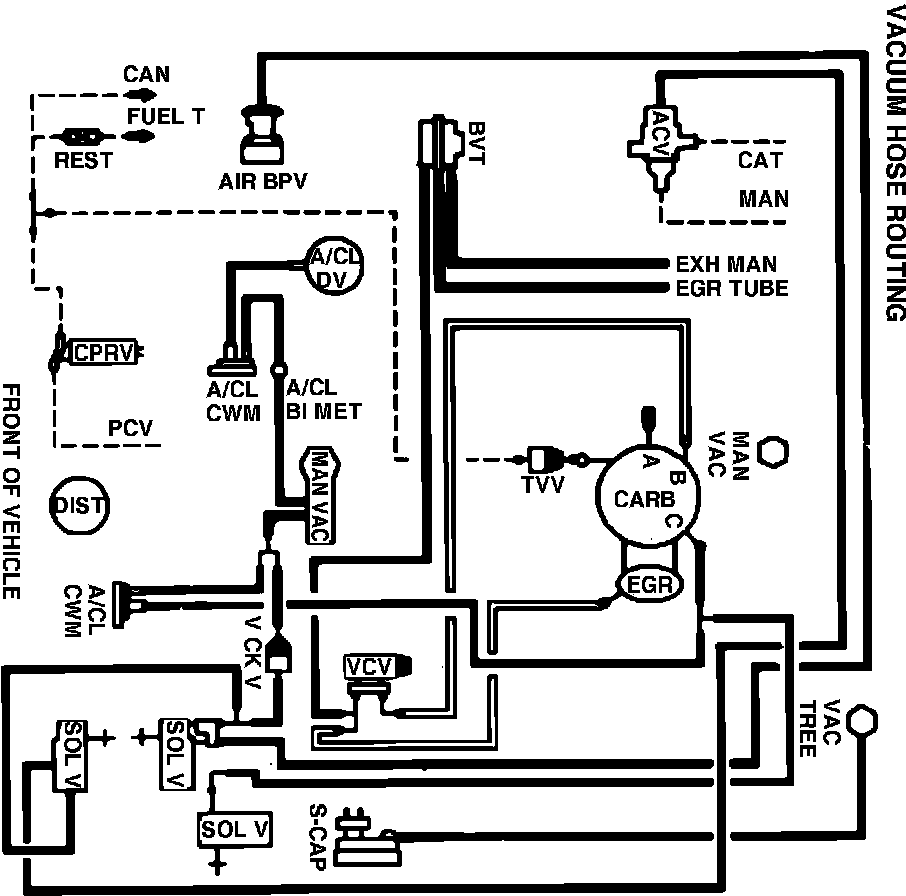

Fig. 16 Calib. Code 4-05A-R00 Federal
Fig. 16 Calib. Code 4-05A-R00 Federal
Fig. 16 1984 4-140 w/Man. Trans. Calib. Code 4-05A-R00 Federal:
