Arm-Disarm Less Keyless Entry

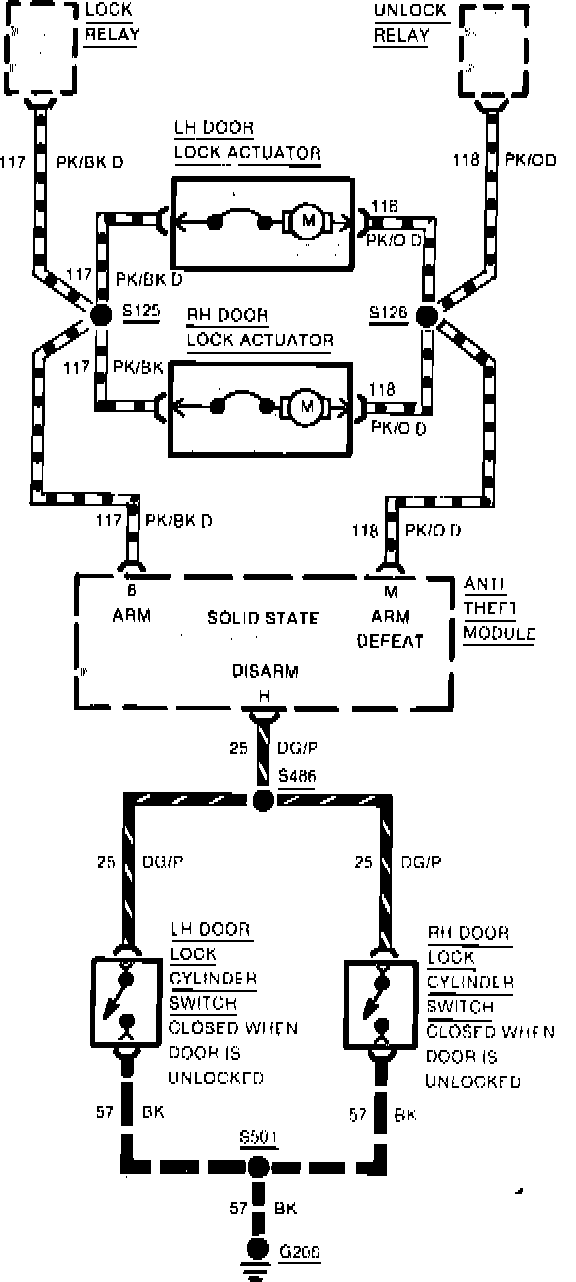

Fig. 14 Anti-Theft Arm-Disarm Wiring Circuit Less Keyless Entry System:
