Mercury Truck
>>
2008
>>
Mountaineer RWD V8-4.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Refrigerant Pressure Sensor / Switch, HVAC
>>
A/C Pressure Transducer
A/C Pressure Transducer

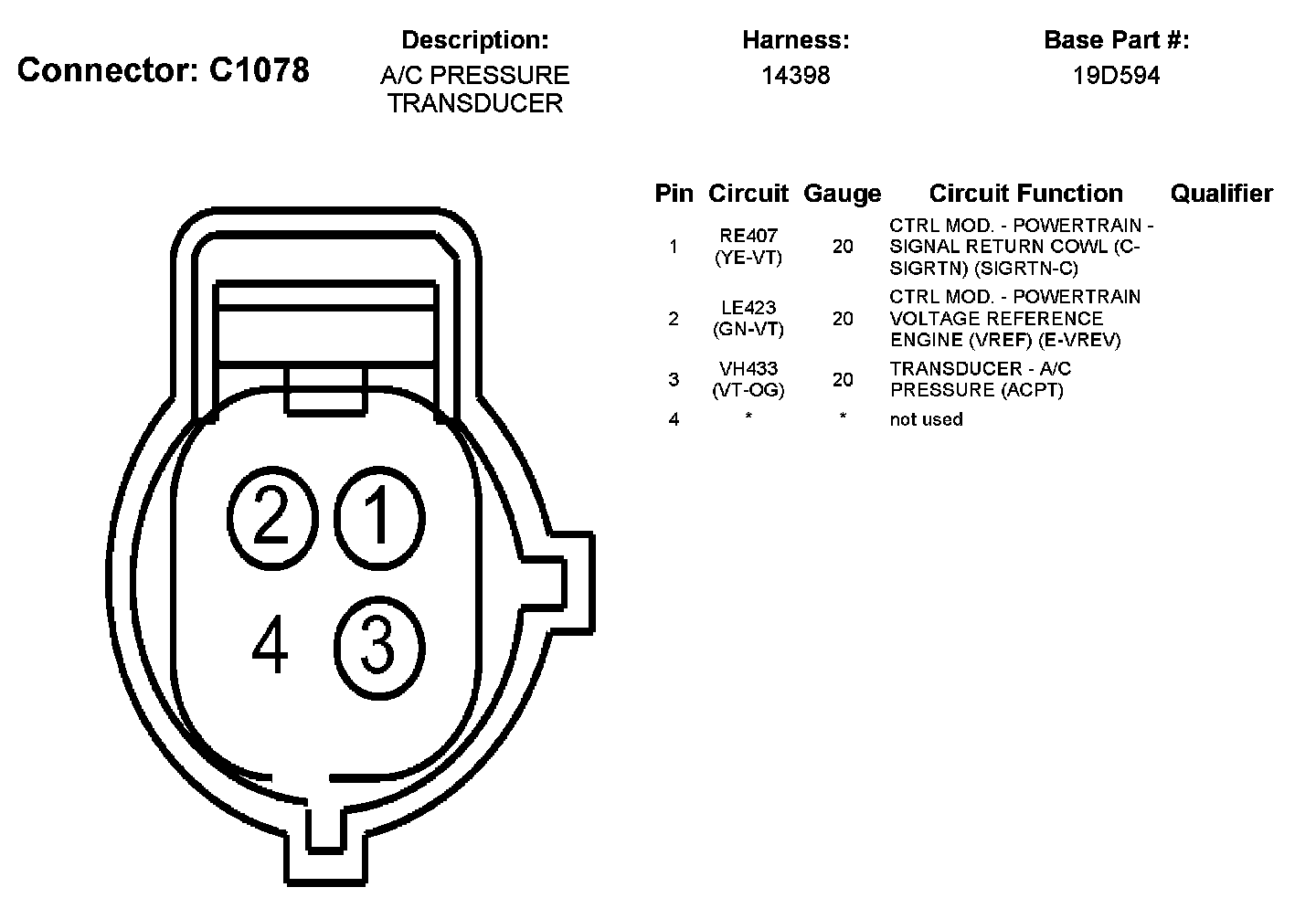

C1078:
