Home
>>
Mercury Truck
>>
2008
>>
Mountaineer RWD V8-4.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Assembly, HVAC
>>
Climate Control Assembly
Climate Control Assembly

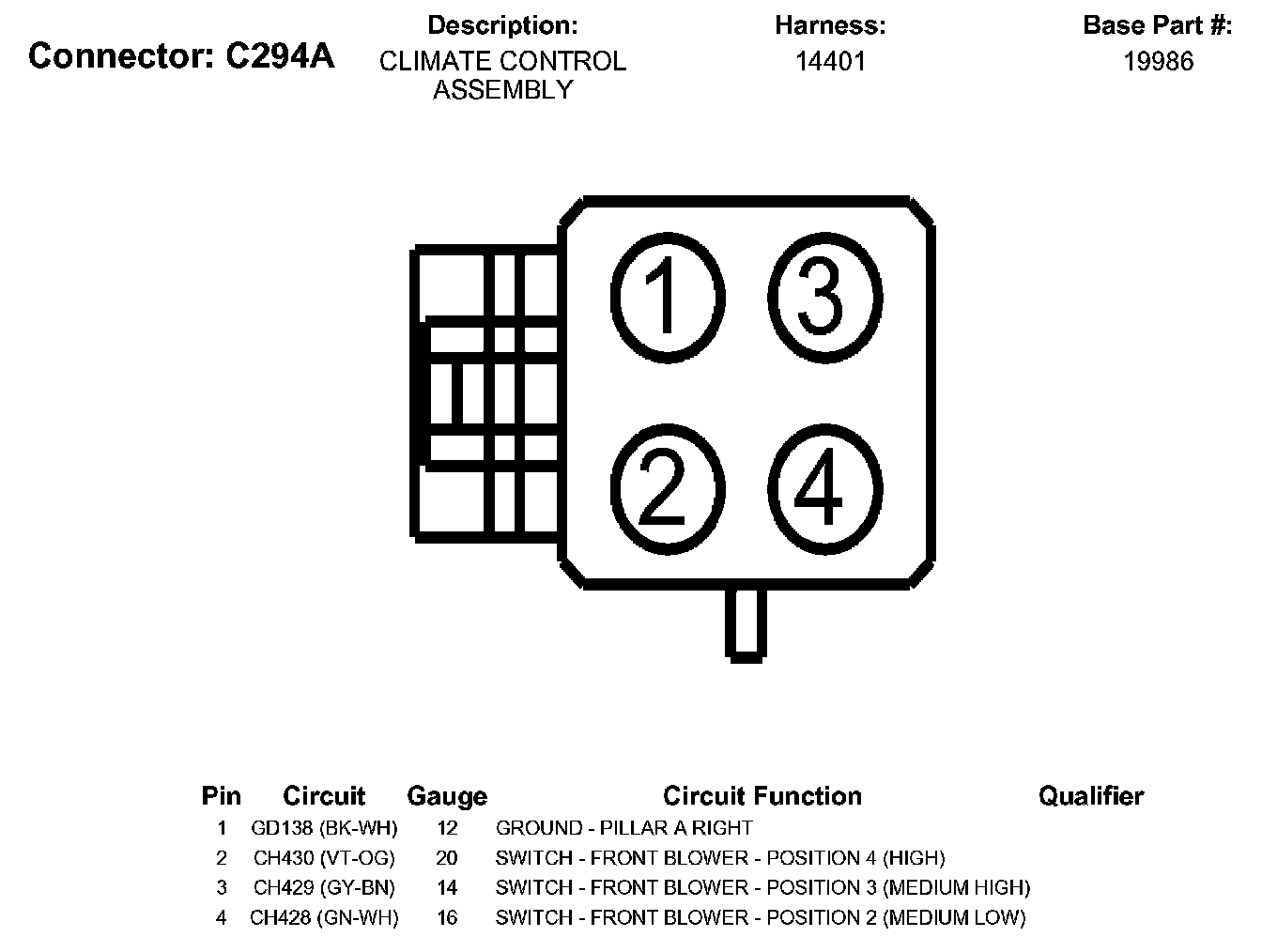

C294A:

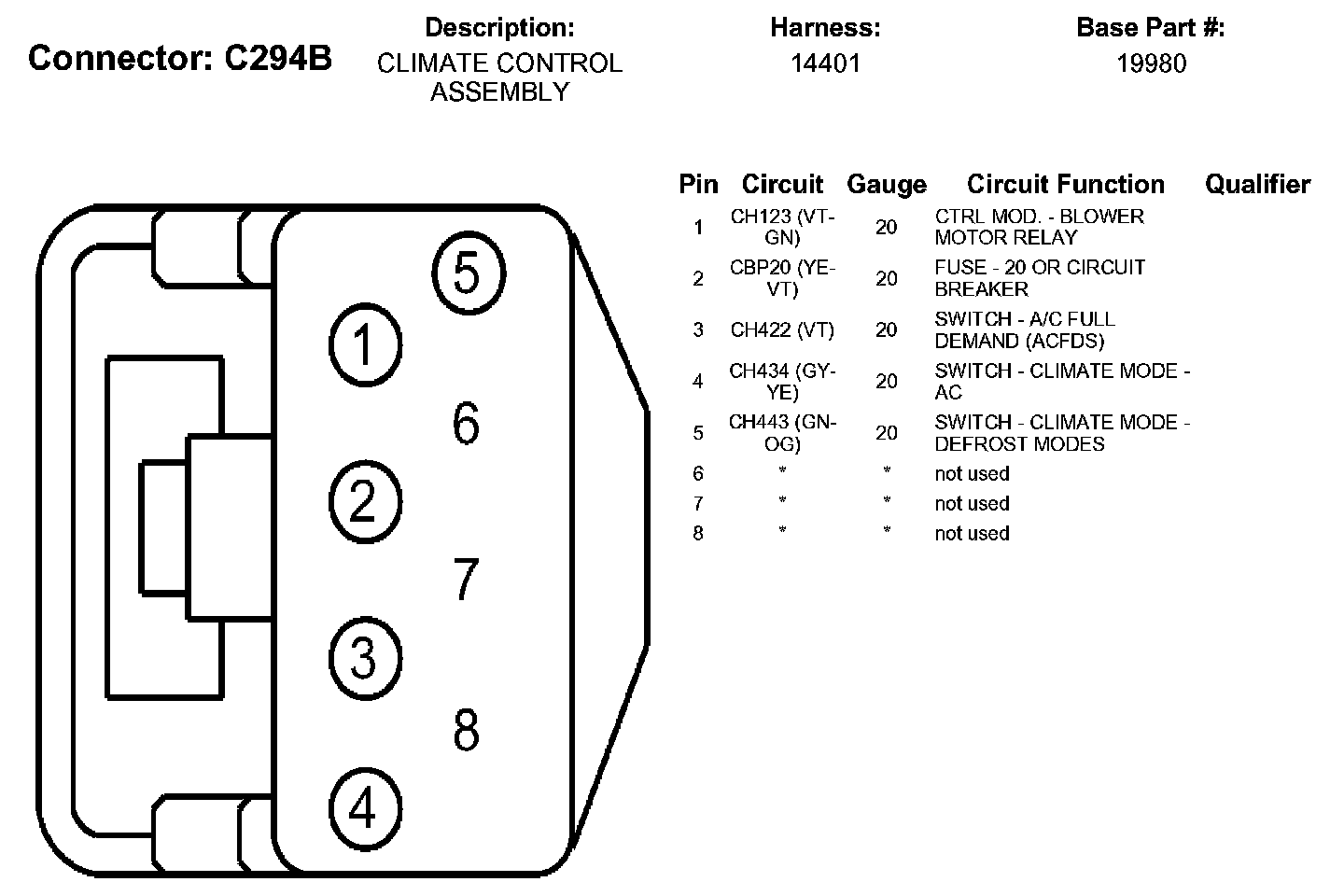

C294B:

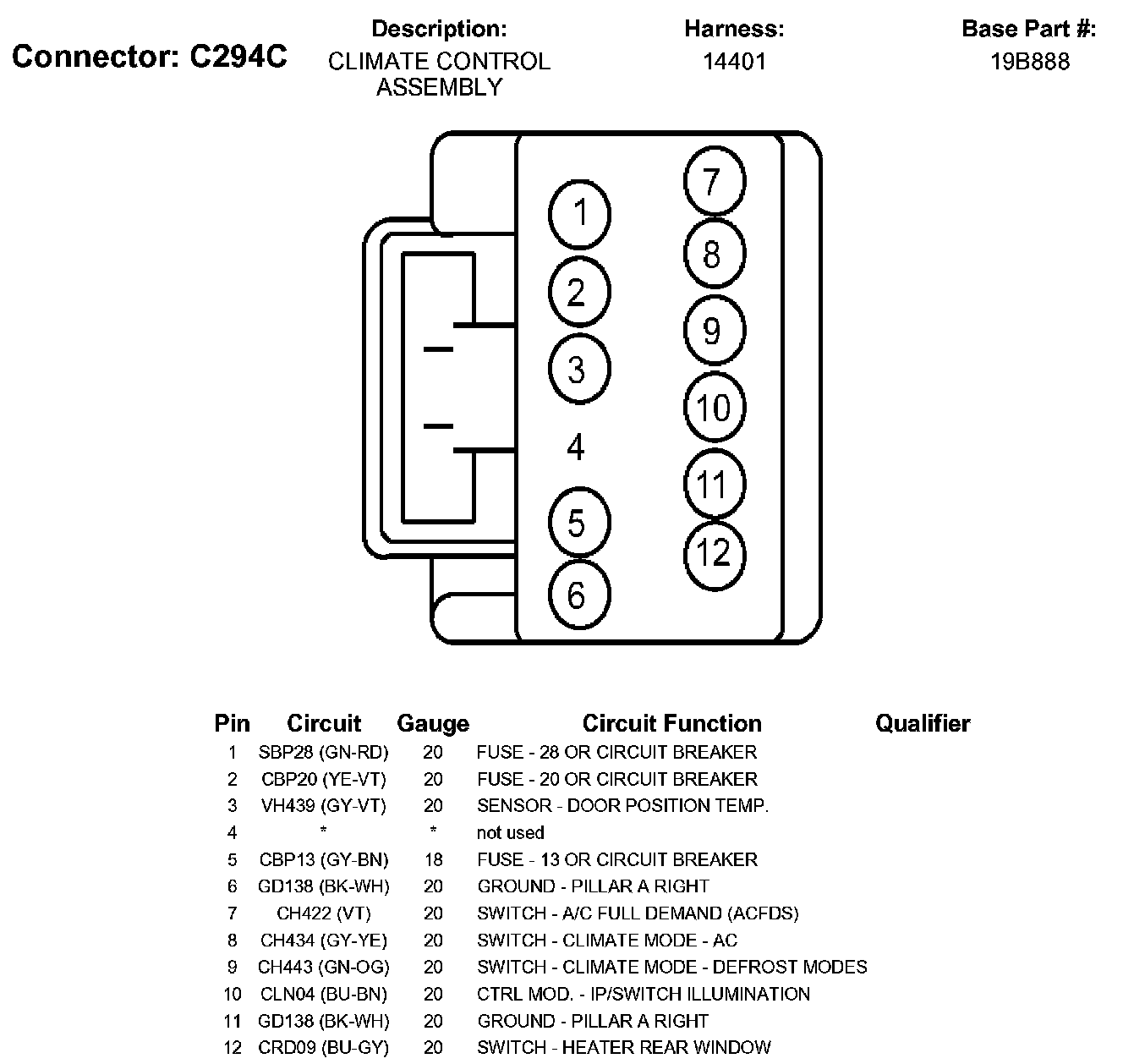

C294C:
