Home >> Mercury Truck >> 2008 >> Mariner 4WD V6-3.0L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Throttle Position Sensor >> Diagrams

Throttle Position Sensor: Diagrams

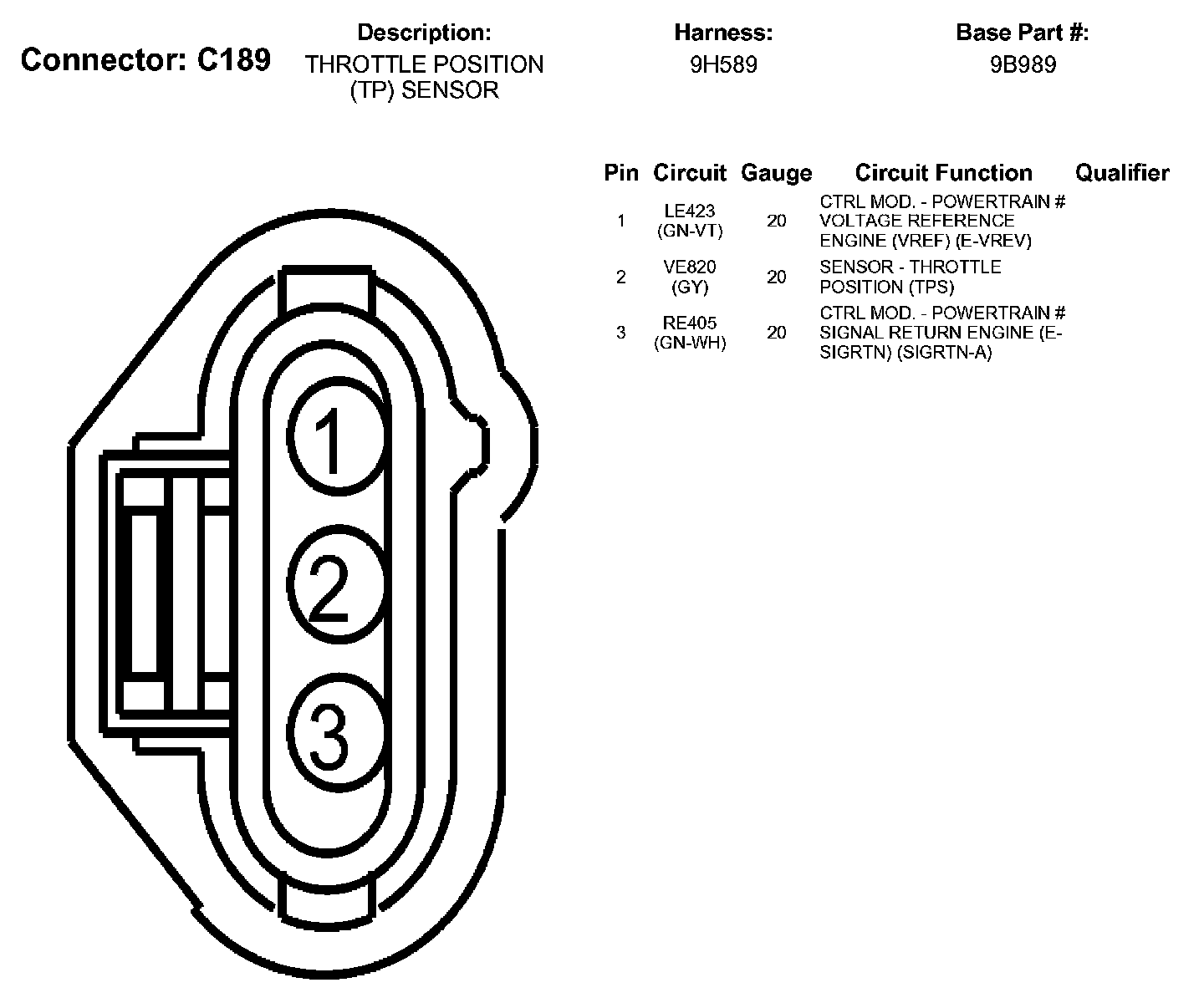

C189:

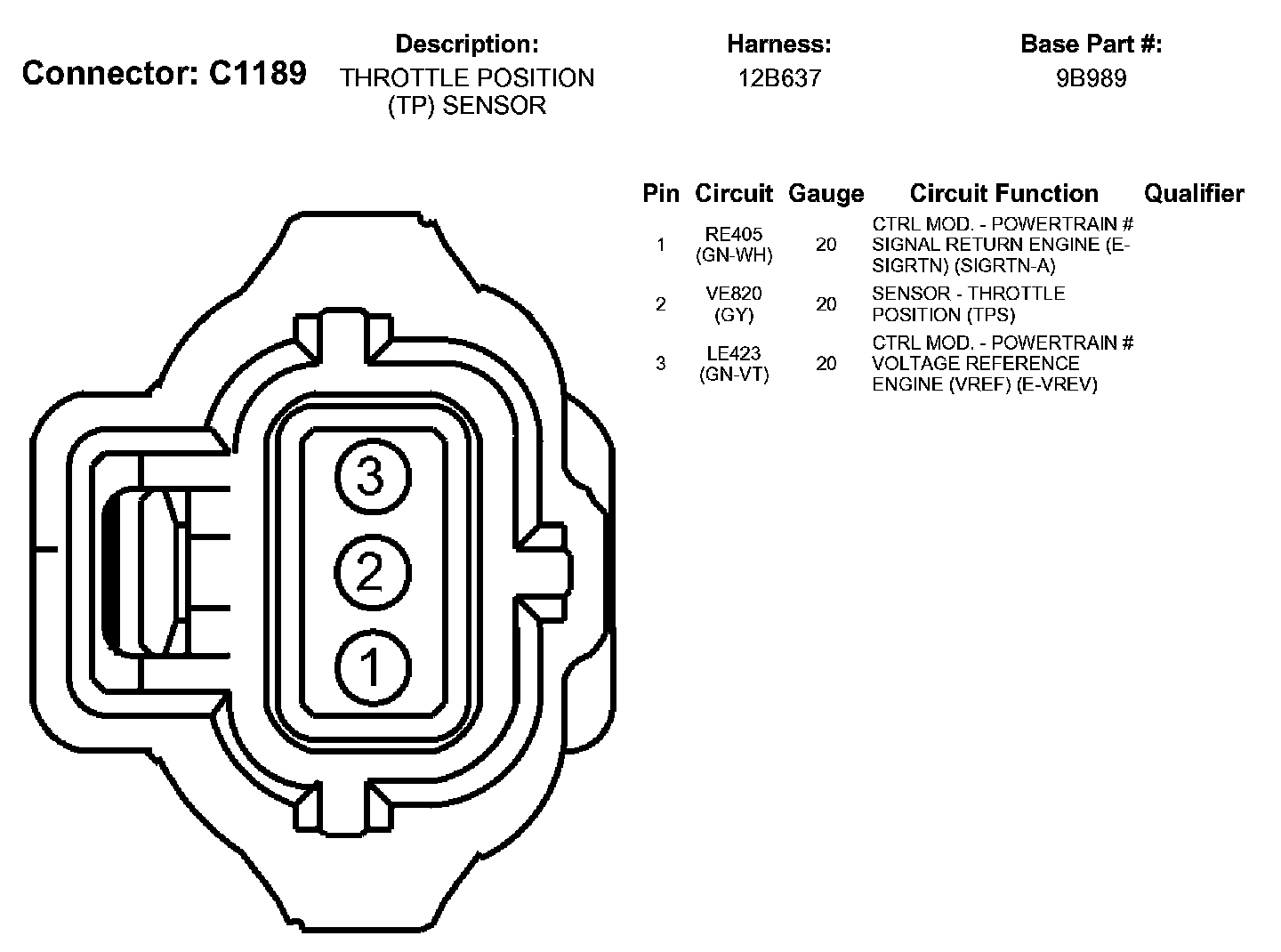

C1189:
