Positive Crankcase Ventilation Valve: Service and Repair

POSITIVE CRANKCASE VENTILATION (PCV) VALVE

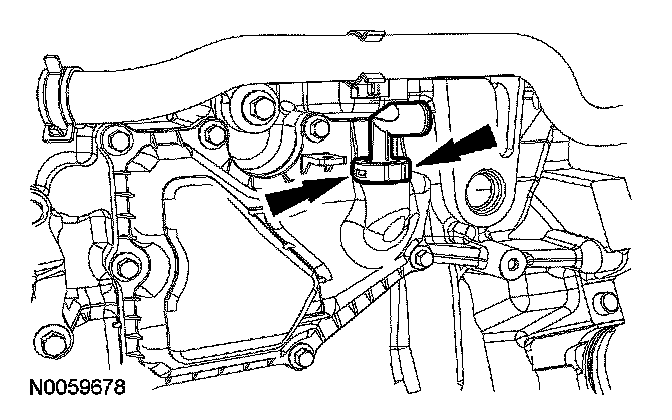

Exploded View







Removal and Installation
1. Remove the intake manifold.
2. Depress the 2 release tabs and remove the PCV valve.







3. To install, reverse the removal procedure.
- Clean and inspect the crankcase oil vent separator gasket and install a new gasket if necessary.
