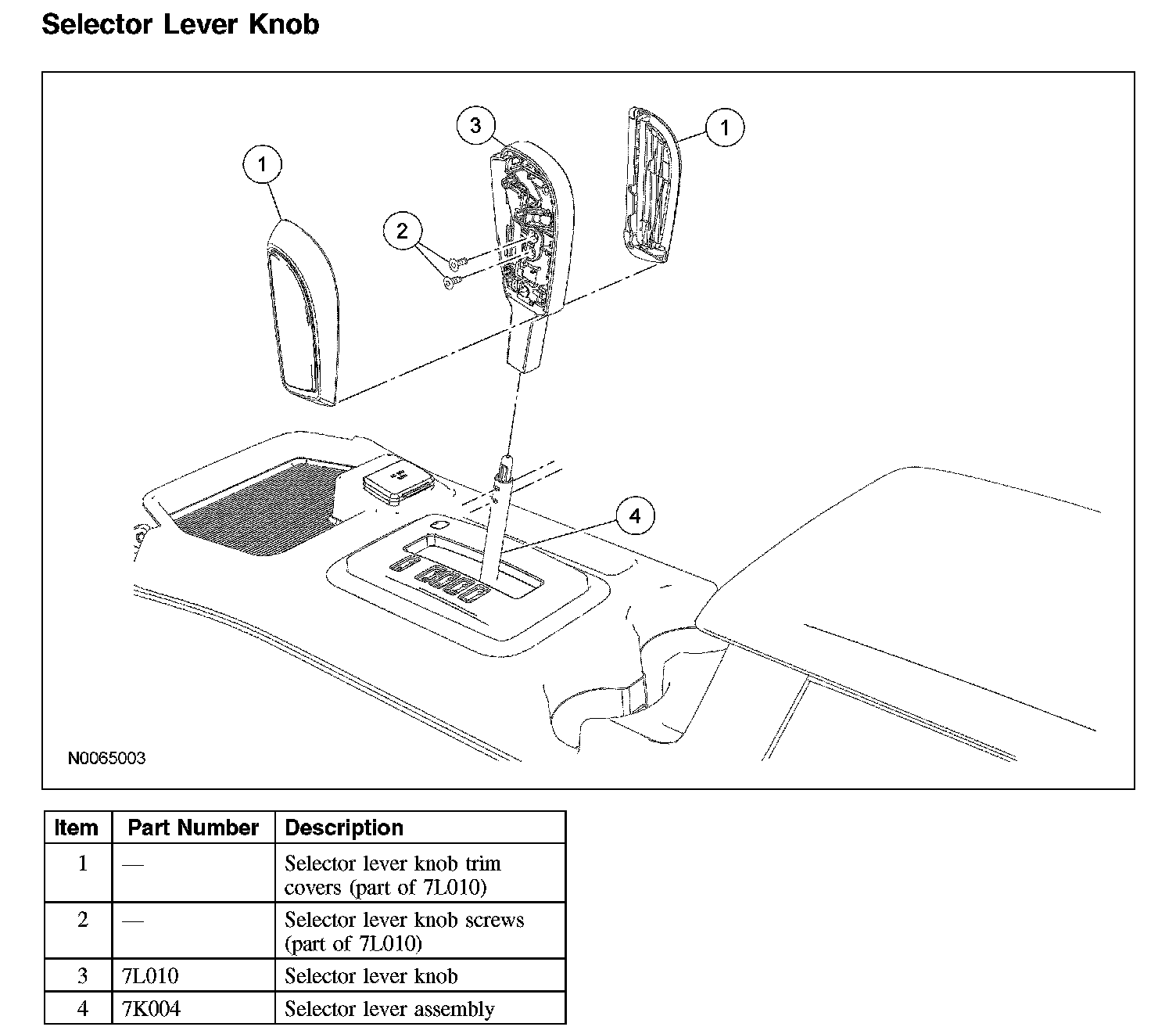

Selector Lever Knob

Selector Lever Knob

Selector Lever Knob:





Removal

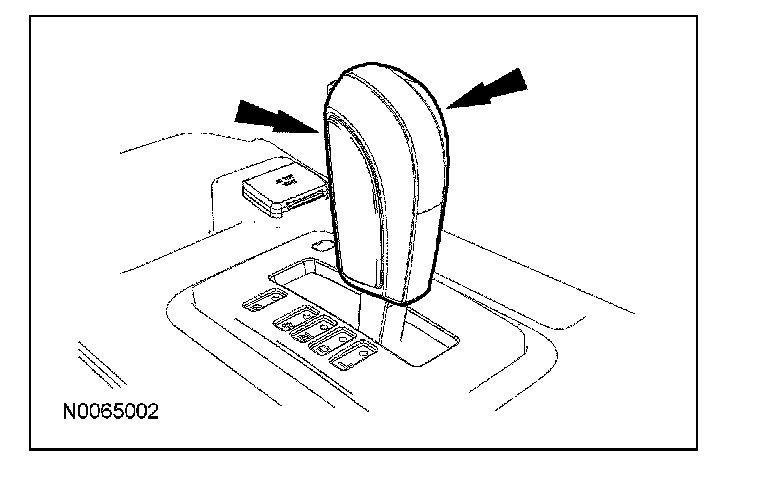

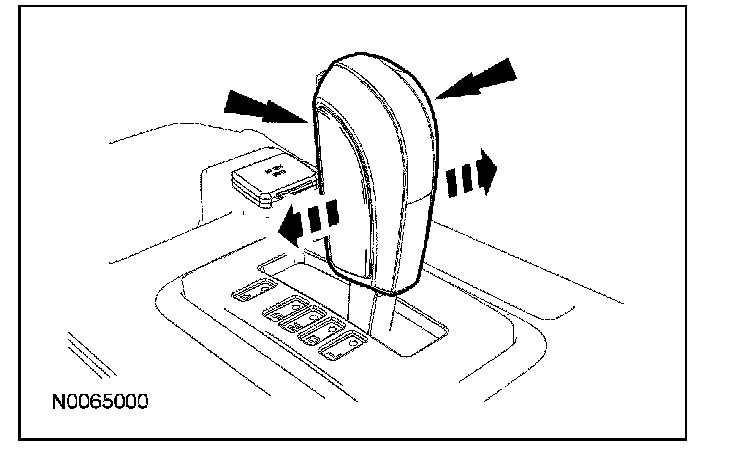

1. Remove the selector lever knob trim covers by carefully prying out on the bottom front corners and then pry out on the top front corner and remove the covers.

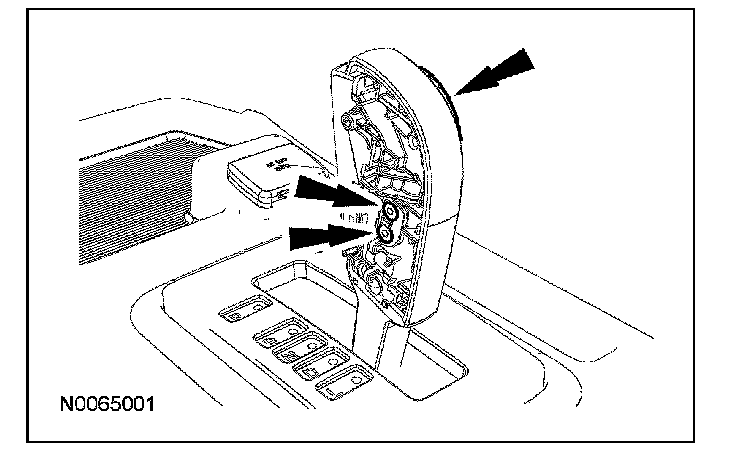

2. Remove the 2 selector lever knob screws and remove the selector lever knob.





Installation

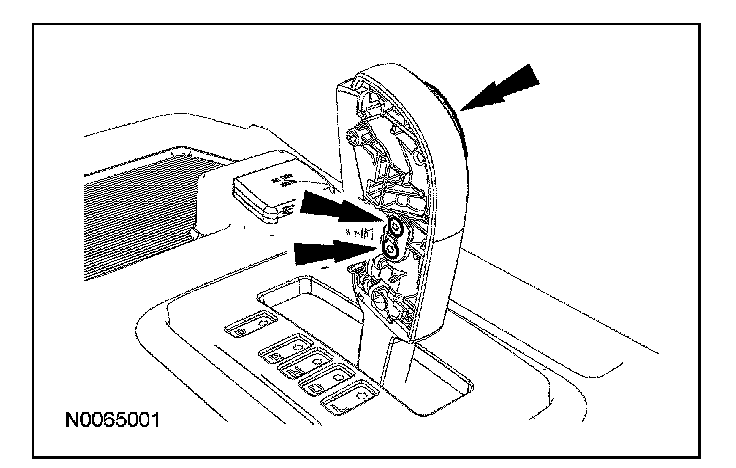

1. Install the selector lever knob and the 2 screws.





2. Install the selector lever knob trim covers.
