Fuel System - Slow Fuel Fill
TSB 08-5-403/17/08
SLOW FUEL FILL BUILT BEFORE 11/26/2007
FORD:
2008 Escape Hybrid
MERCURY:
2008 Mariner Hybrid
ISSUE
Some 2008 Escape Hybrid and Mariner Hybrid vehicles built before 11/26/2007 may exhibit a slow fuel fill concern.
ACTION
Follow the Service Procedure steps to correct the condition.
SERVICE PROCEDURE
NOTE
THE NEW FUEL TANK HAS BEEN UPDATED WITH AN IMPROVED VAPOR VALVE SET TO IMPROVE SLOW FUEL FILL. WHEN INSTALLING THE NEW FUEL TANK A REDESIGNED FUEL DELIVERY MODULE IS REQUIRED.
1. Follow Workshop Manual (WSM), Section 310-01B for fuel tank removal.
2. Install updated fuel delivery module into the updated replacement fuel tank. Follow WSM, Section 310-01B.
3. Install updated fuel tank following WSM, Section 310-01B.

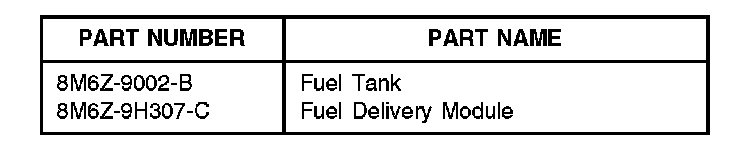

Parts Block
WARRANTY STATUS: Eligible Under Provisions Of New Vehicle Limited Warranty Coverage And Emissions Warranty Coverage
IMPORTANT: Warranty coverage limits/policies are not altered by a TSB. Warranty coverage limits are determined by the identified causal part.
OPERATION DESCRIPTION TIME
080504A 2008 Escape Hybrid FWD, 1.6 Hrs.
Mariner Hybrid FWD Built
Before 11/26/2007:
Replace Fuel Tank And,
Fuel Delivery Module
Includes Time To Relieve
Fuel Pressure, Drain Fuel
Tank (Do Not Use With
9350E, 9002A, 5200B,
5230A, 1007D7)
080504B 2008 Escape Hybrid AWD, 2.4 Hrs.
Mariner Hybrid AWD Built
Before 11/26/2007:
Replace Fuel Tank And,
Fuel Delivery Module
Includes Time To Relieve
Fuel Pressure, Drain Fuel
Tank (Do Not Use With
9350E, 9002A, 5200B,
5230A, 1007D7)
DEALER CODING
CONDITION
BASIC PART NO. CODE
9002 42
