Mercury Truck
>>
2008
>>
Mariner 2WD L4-2.3L VIN H Hybrid
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse Block
>>
Locations
>>
Passenger Compartment Fuse Panel
Passenger Compartment Fuse Panel

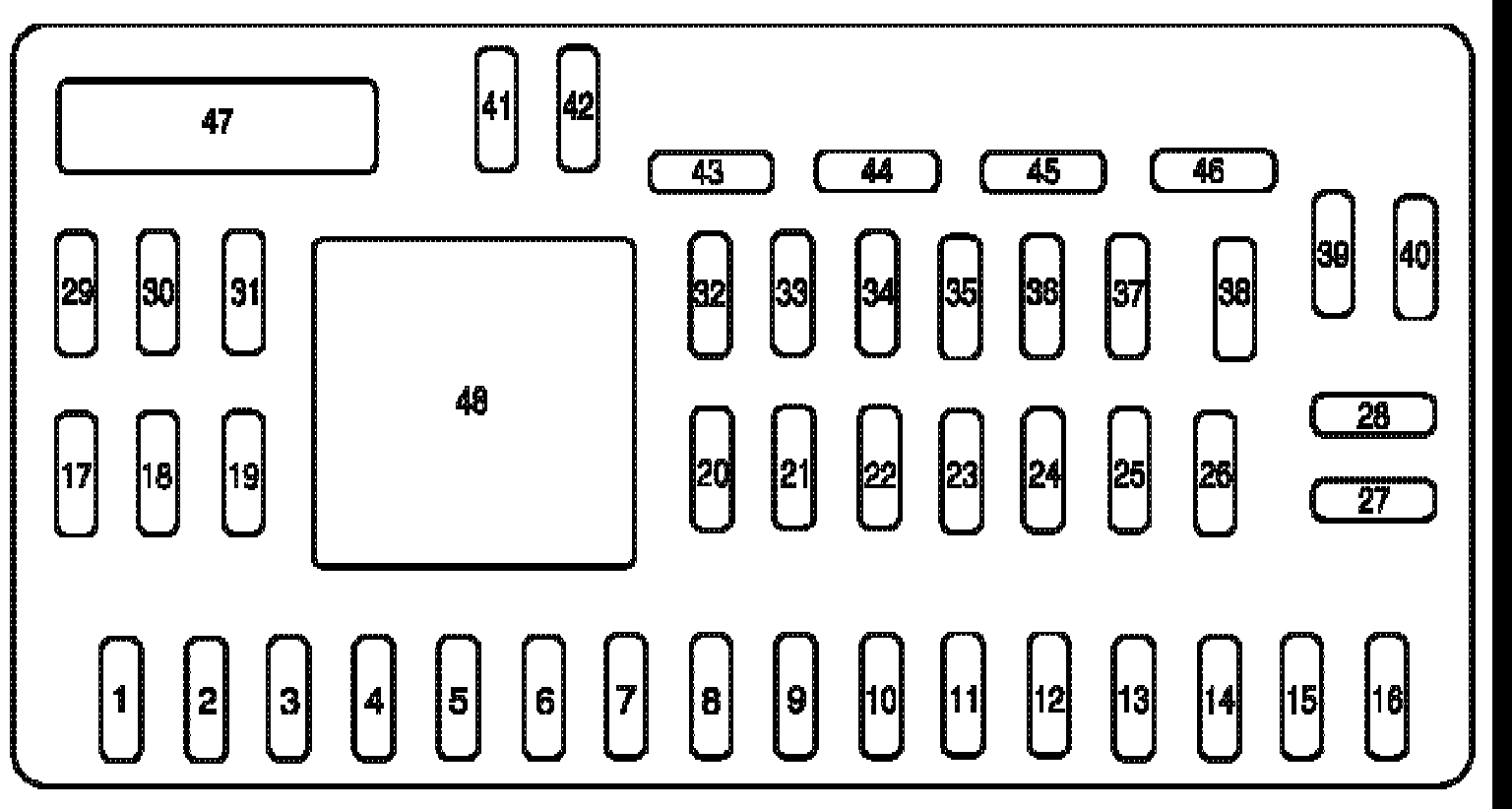

Passenger Compartment Fuse Panel:

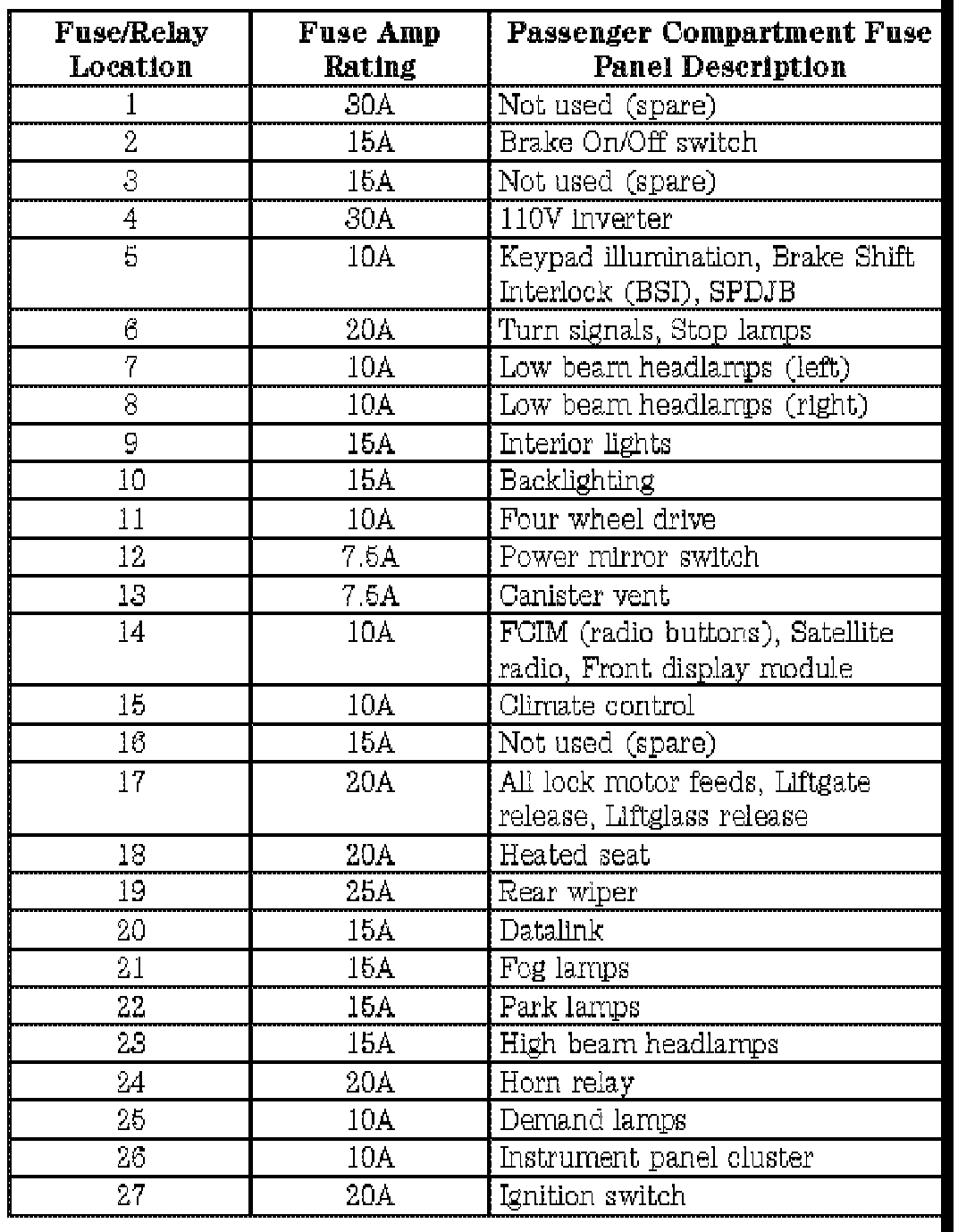

1 - 27:
28 - 48:
