Test O: DTC P2533 - Ignition Switch Run/Start Position Circuit

PINPOINT TEST O: DTC P2533 - IGNITION SWITCH RUN/START POSITION CIRCUIT

Normal Operation

At all times, the battery control module (BCM) monitors the ignition run/start input circuit for voltage.
- DTC P2533 Ignition Switch Run/Start Position Circuit - If the BCM does not detect voltage on the ignition run/start input circuit with the ignition switch in the ON position and the engine ON or OFF will cause this DTC to be set.

This pinpoint test is intended to diagnose the following:

- Fuse
- Circuitry
- HVTB

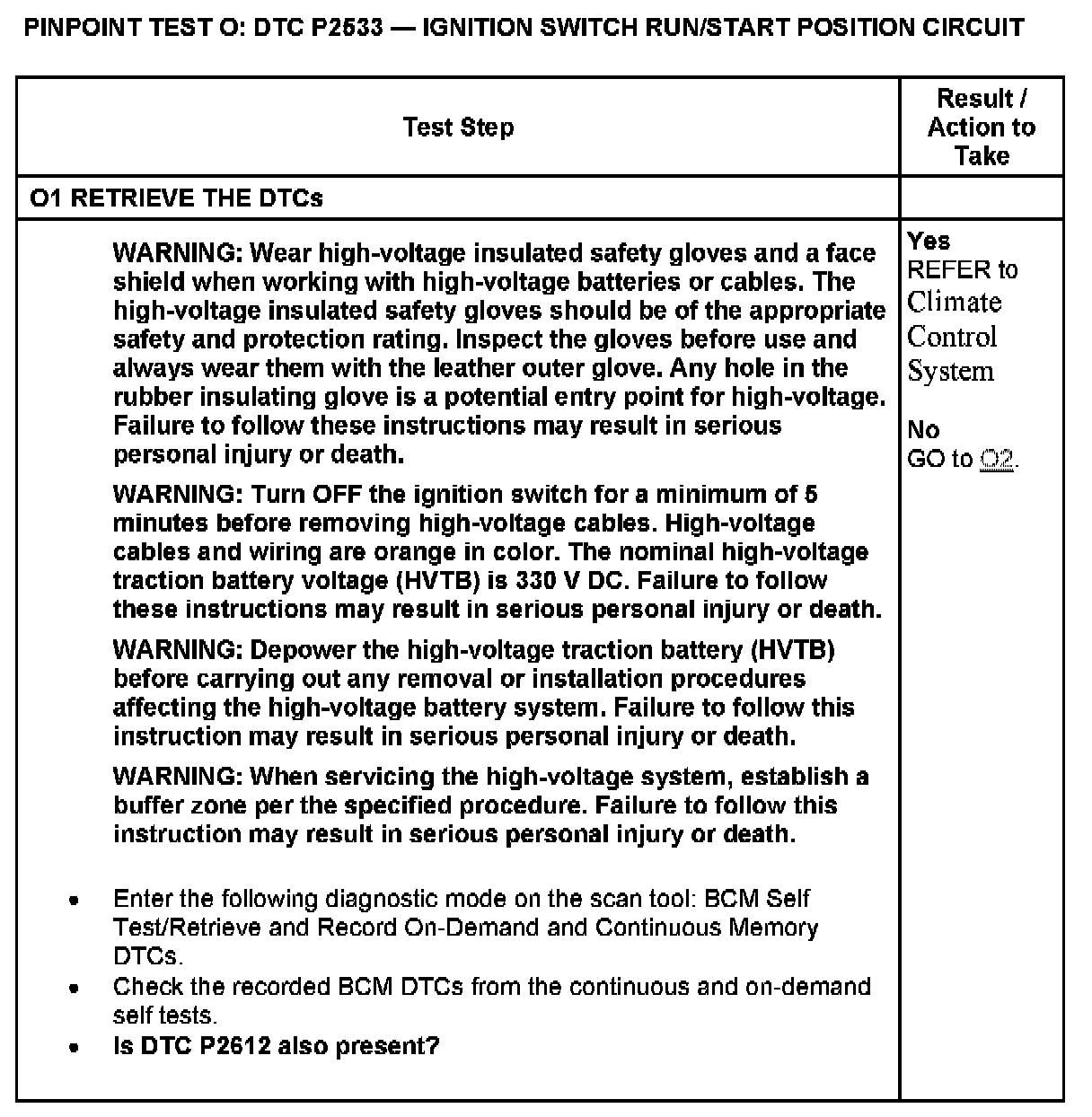

O1:

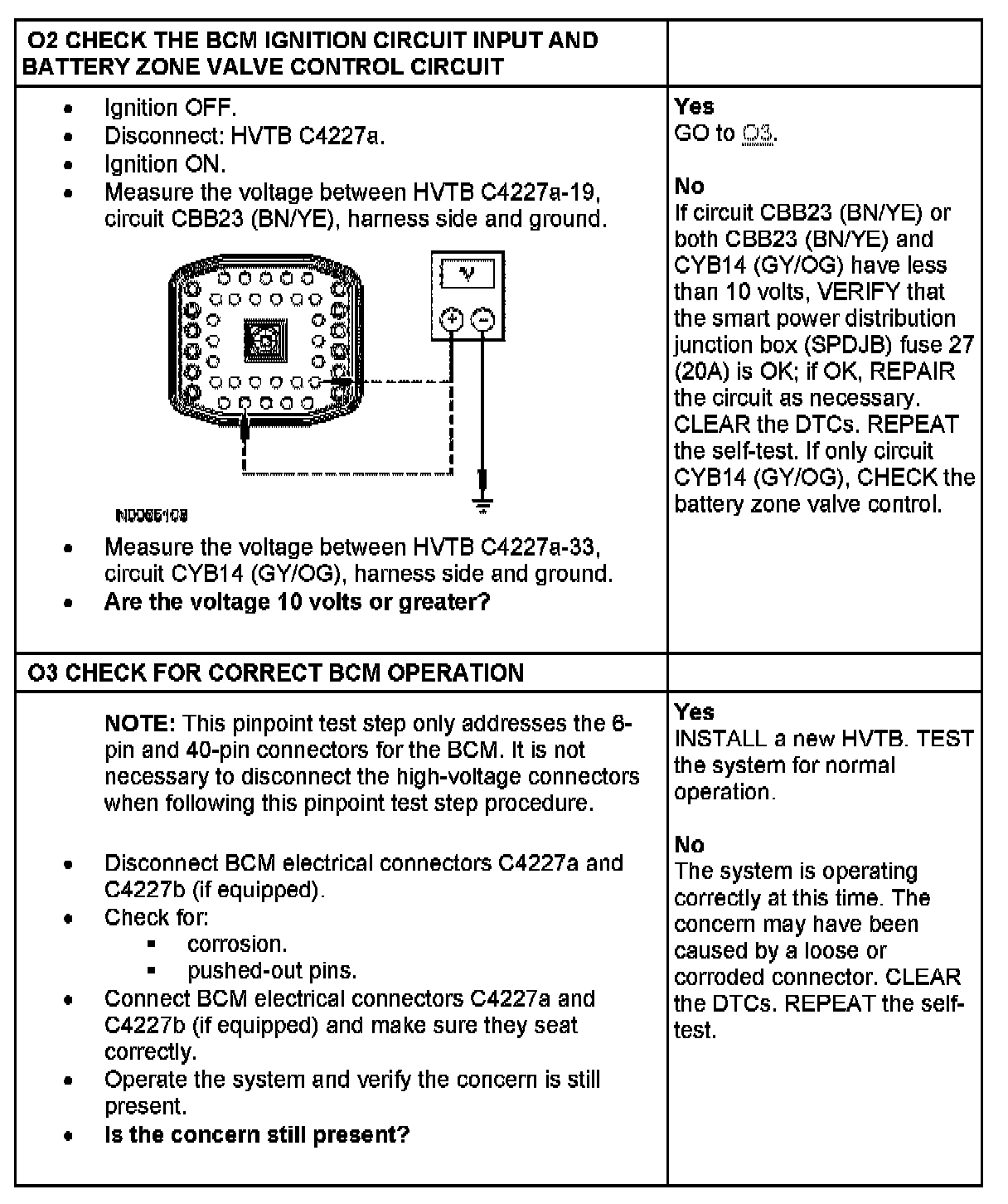

O2 - O3:
