Battery Zone Valve

BATTERY ZONE VALVE







Removal and Installation

NOTE: The battery zone valve is not interchangeable with the passenger zone valve.

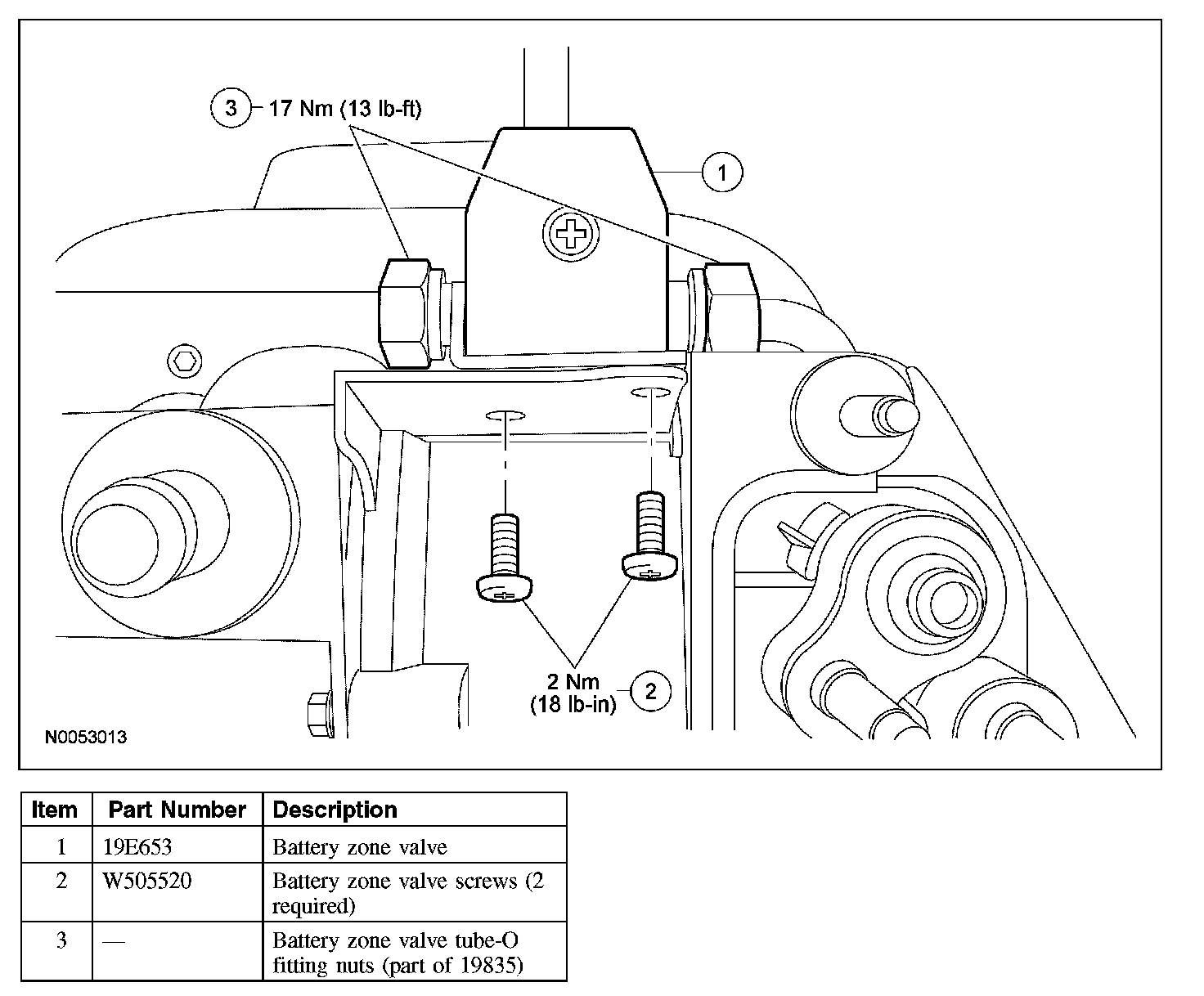

1. Remove the auxiliary climate control housing.
2. Remove the 2 battery zone valve screws.
- To install, tighten to 2 Nm (18 lb-in).

3. Loosen the nuts and disconnect the battery zone valve tube-O fittings.
- Discard the O-ring seals.
- To install, tighten to 17 Nm (13 lb-ft).

4. Disconnect the electrical connector and remove the battery zone valve.
5. To install, reverse the removal procedure.
- Install new O-ring seals.
