Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Mercury Truck
>>
2008
>>
Mariner 2WD L4-2.3L VIN H Hybrid
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Flywheel
Flywheel
Lower End Components - Exploded View

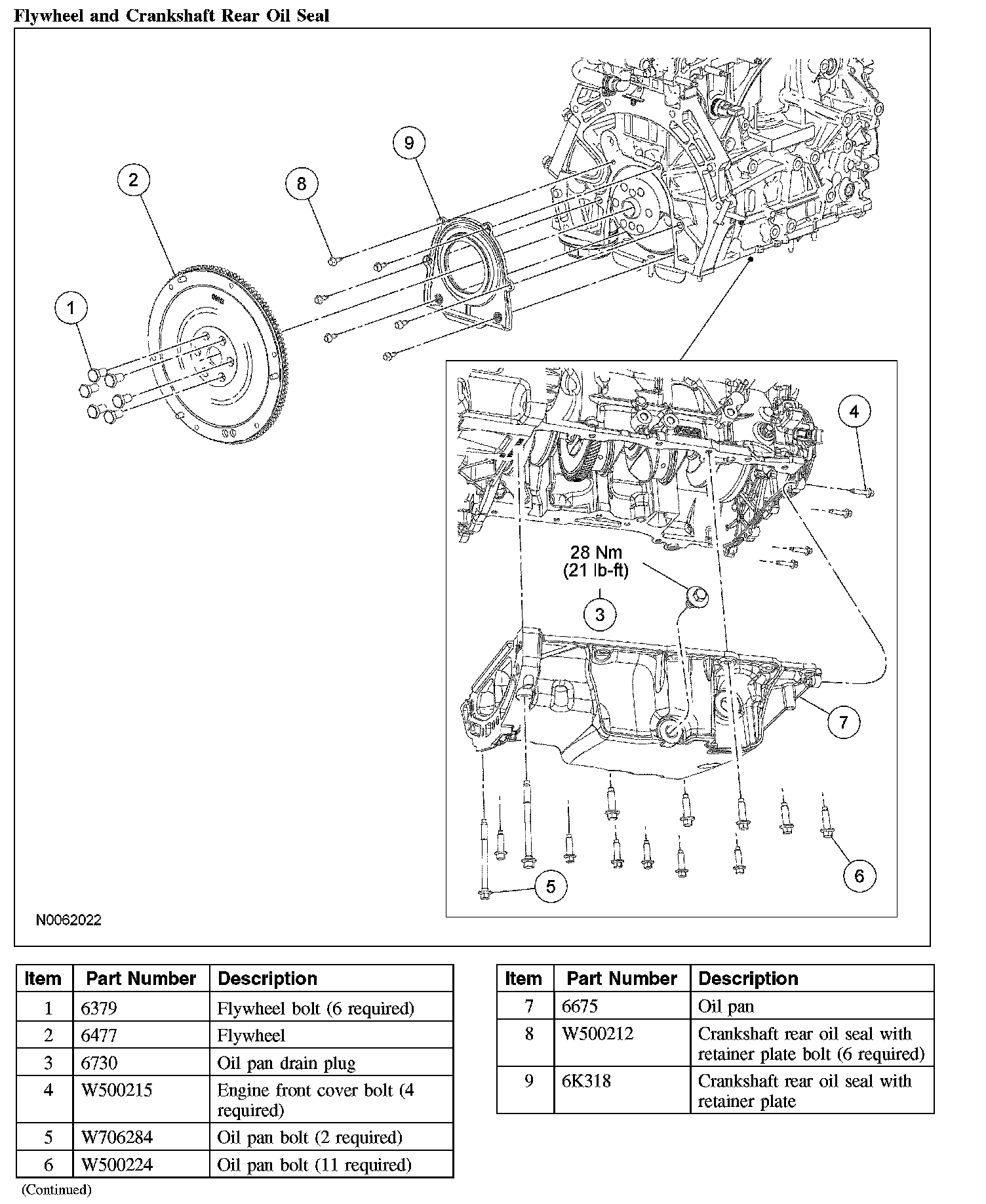

Flywheel and Crankshaft Rear Oil Seal:
