Battery Cooling Fan Module, Hybrid Drive
Battery Cooling Fan Module, Hybrid Drive

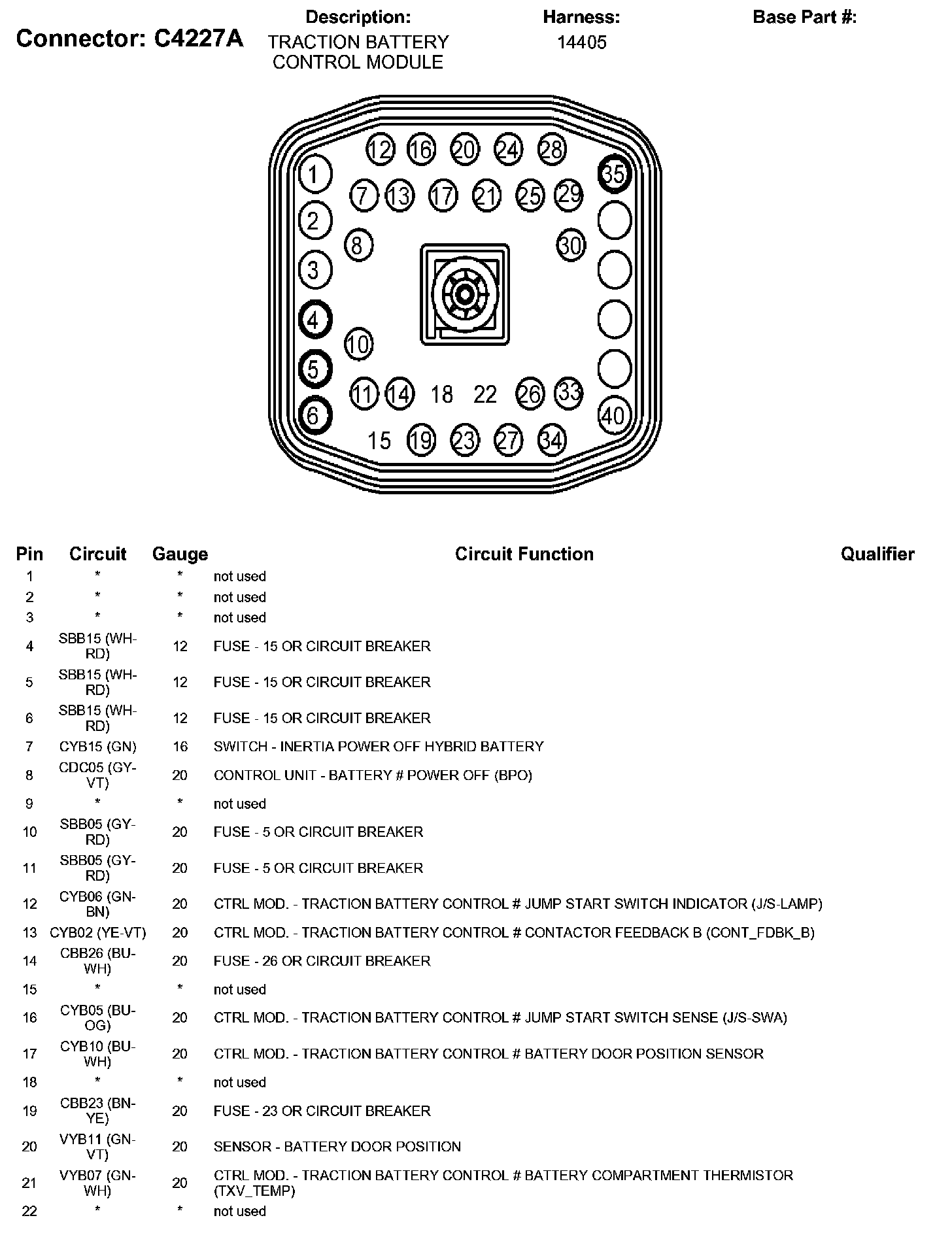

C4227A (Part 1):

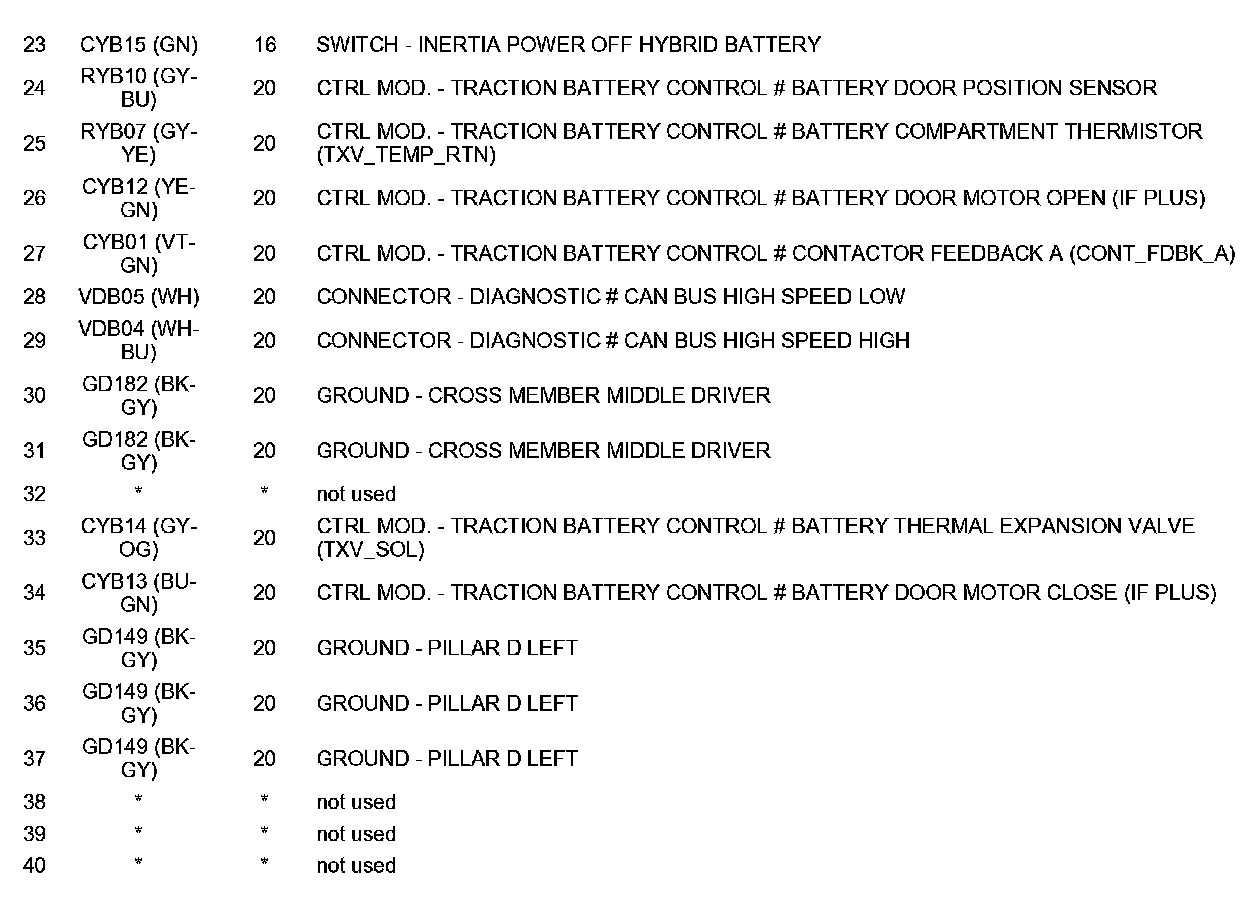

C4227A (Part 2):

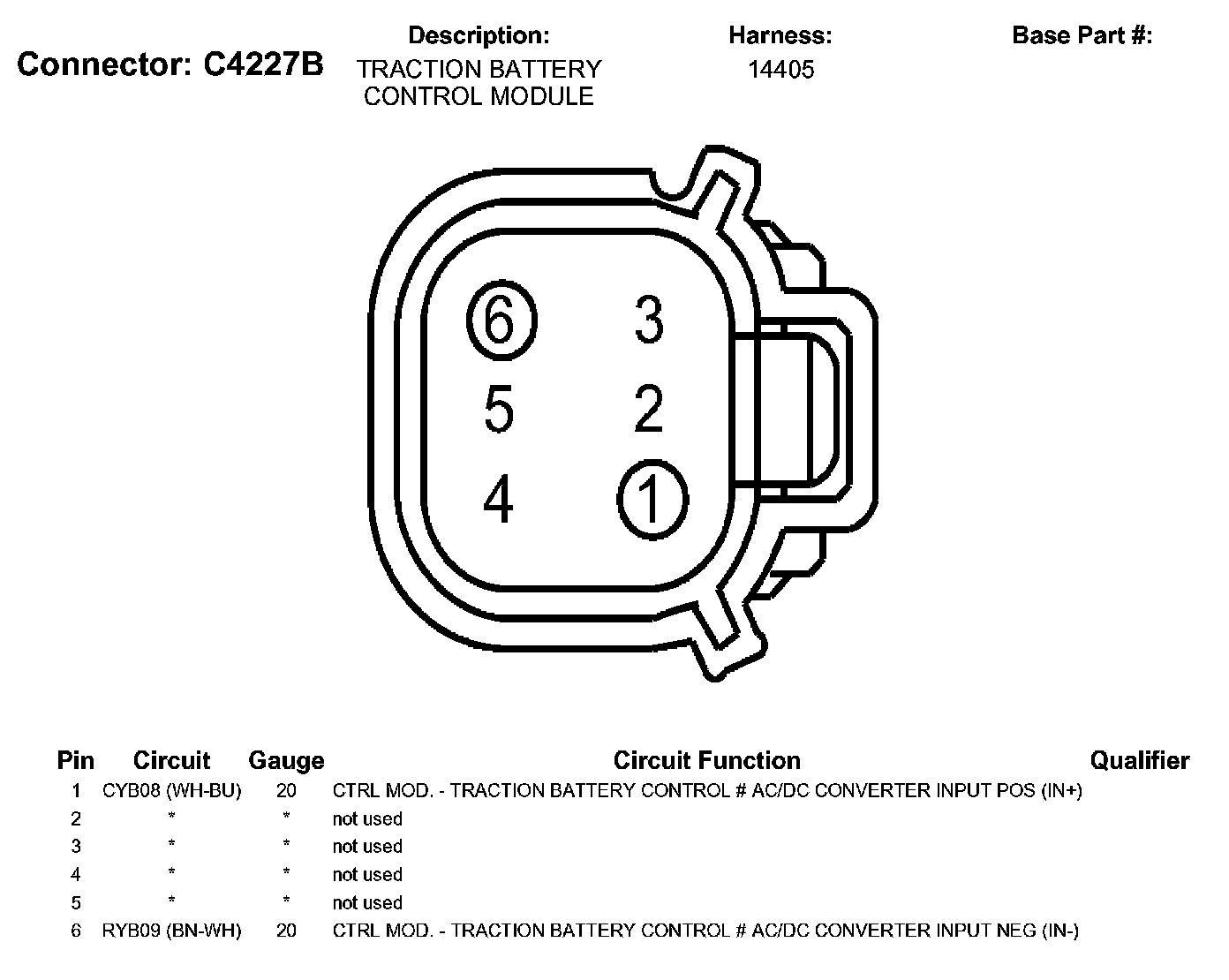

C4227B:

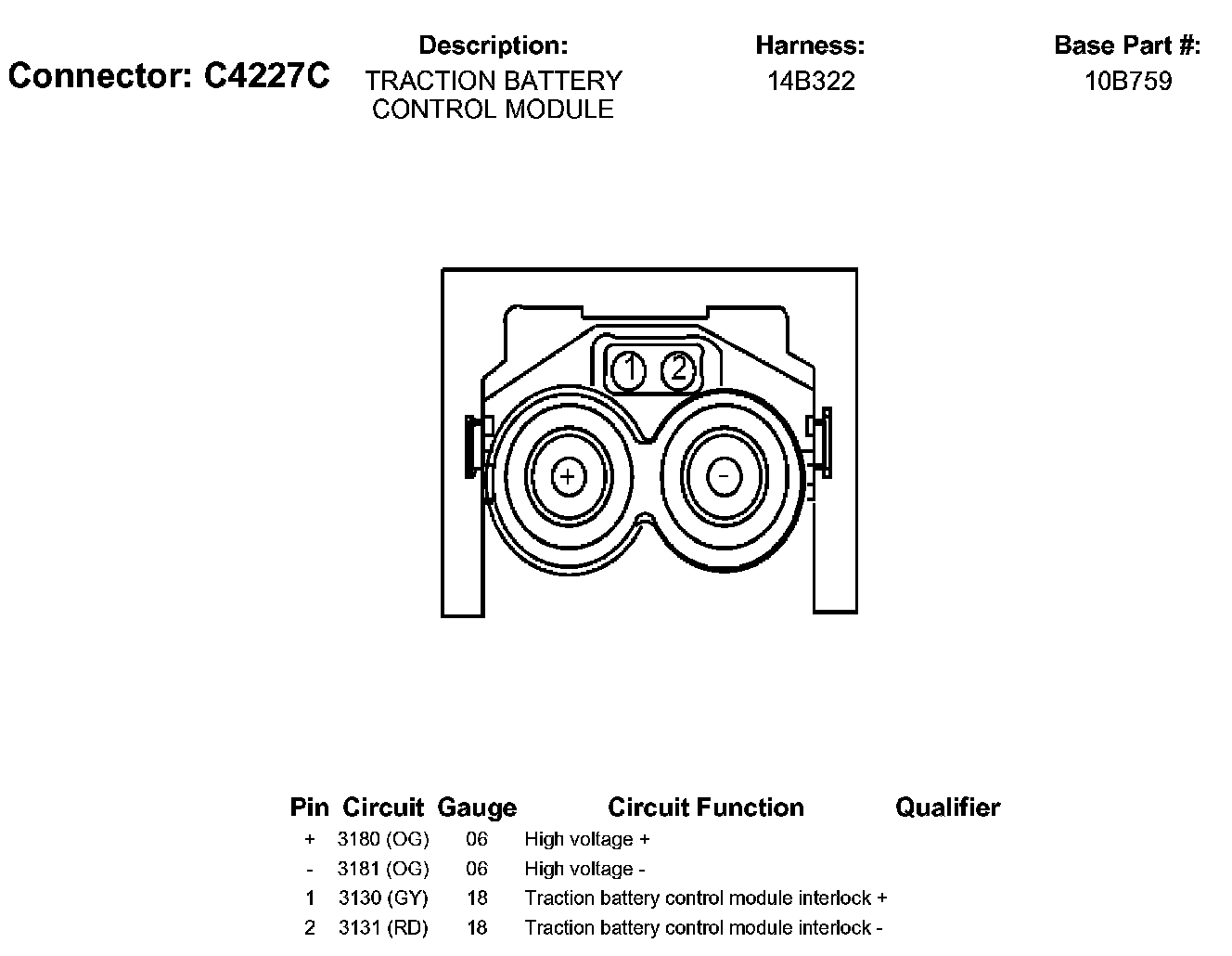

C4227C:
