Brake Disc Shield Removal and Installation

Brake Disc Shield

Removal
1. Remove the brake disc.

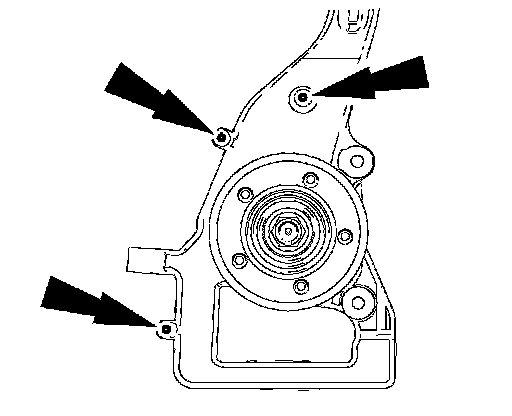

2. Remove and discard the 3 brake disc shield bolts.
3. Remove the brake disc shield.

Installation





1. Drill three 6.35 mm (0.25 inch) holes into the wheel knuckle.
2. Position the shield onto the wheel knuckle.
3. Secure the brake disc shield to the wheel knuckle with three 6.35 mm (0.25 in) rivets (part number W701950 S100).
4. Install the brake disc.
