Home >> Mercury Truck >> 2005 >> Mountaineer AWD V6-4.0L VIN E >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Braking Sensor/Switch >> Locations

Braking Sensor/Switch: Locations

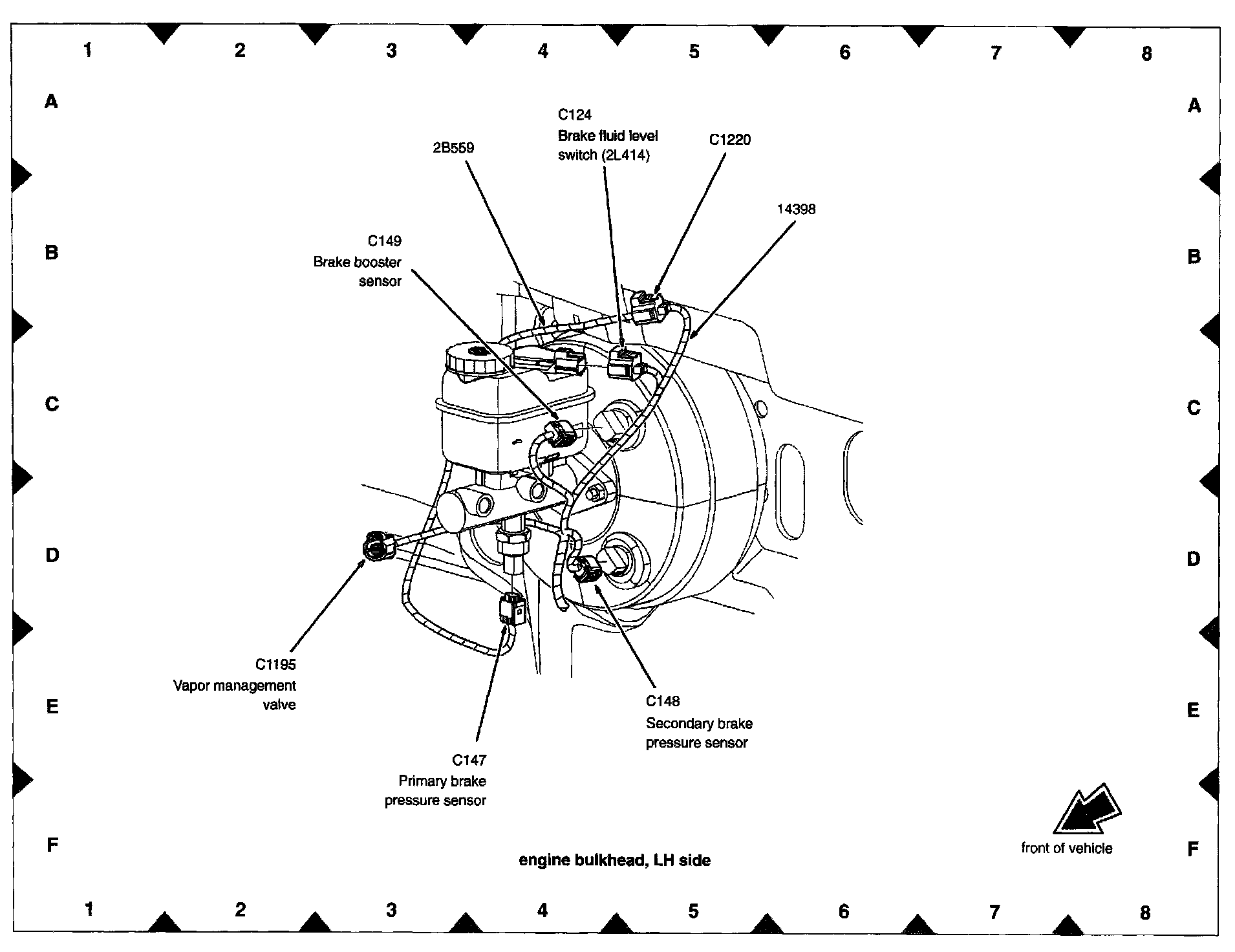

View 151-11 (Engine Bulkhead, LH Side):
