Positive Crankcase Ventilation Valve: Service and Repair

POSITIVE CRANKCASE VENTILATION (PCV) VALVE

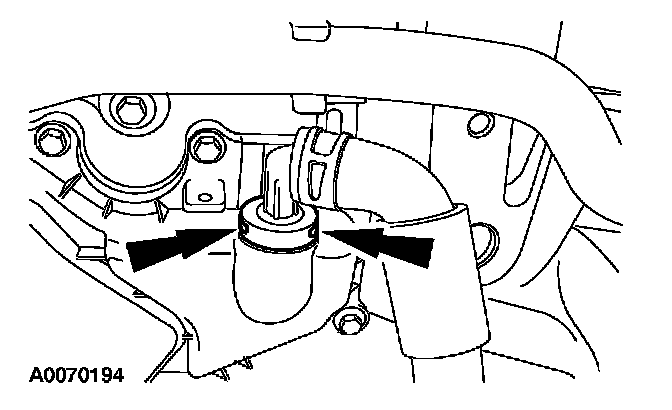

Exploded View

Removal and Installation
1. With the vehicle in NEUTRAL, position it on a hoist.
2. Remove the intake manifold.







3. Disengage the positive crankcase ventilation (PCV) valve cap from the two tabs and remove the PCV valve.
4. To install, reverse the removal procedure.
