Home >> Mercury Truck >> 2005 >> Mariner 2WD L4-2.3L VIN Z >> Repair and Diagnosis >> Lighting and Horns >> Fog/Driving Lamp >> Testing and Inspection >> Pinpoint Tests >> Connector Circuit Reference >> Fog Lamp Relay C1007

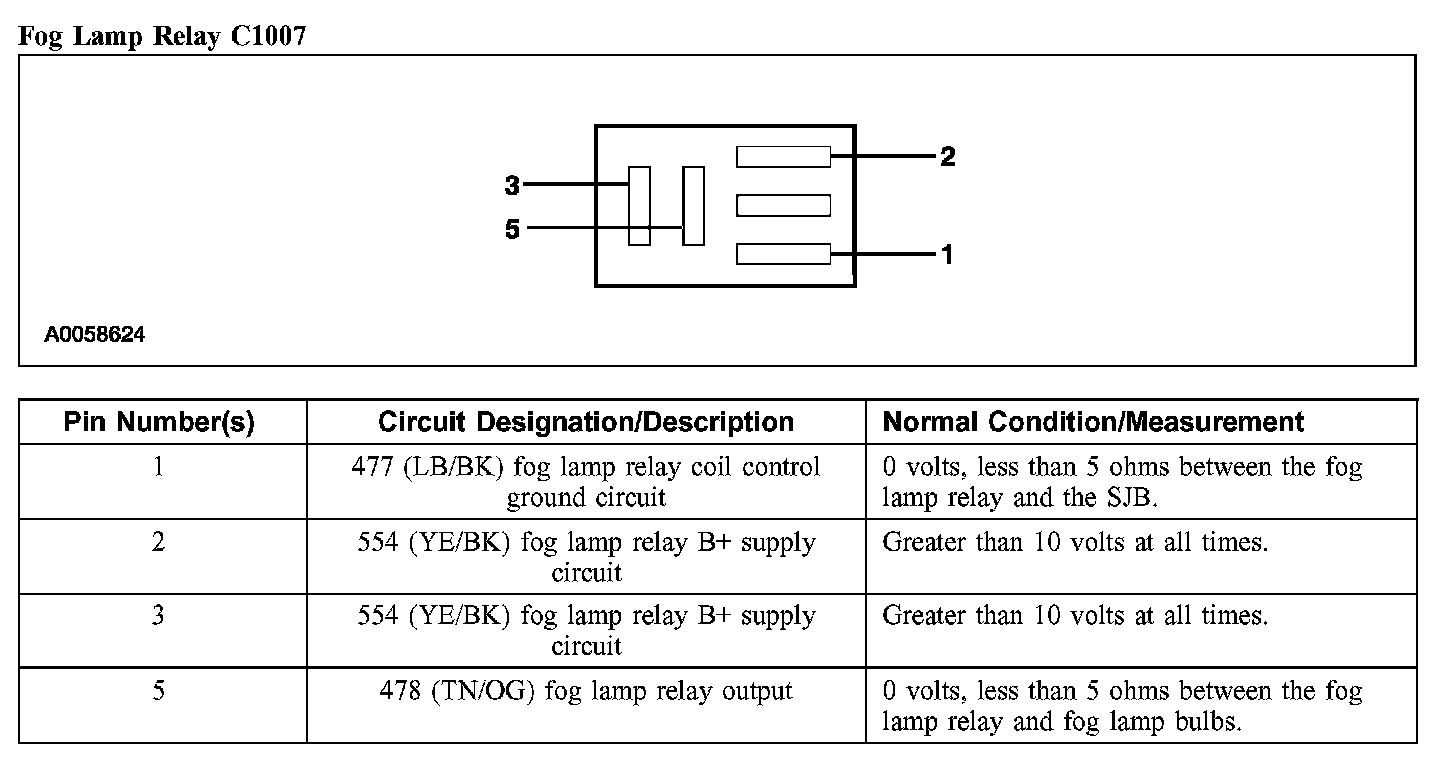

Fog Lamp Relay C1007

Fog Lamp Relay C1007:
