Mercury Truck
>>
2005
>>
Mariner 2WD L4-2.3L VIN Z
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Vacuum Schematic
Vacuum Schematic

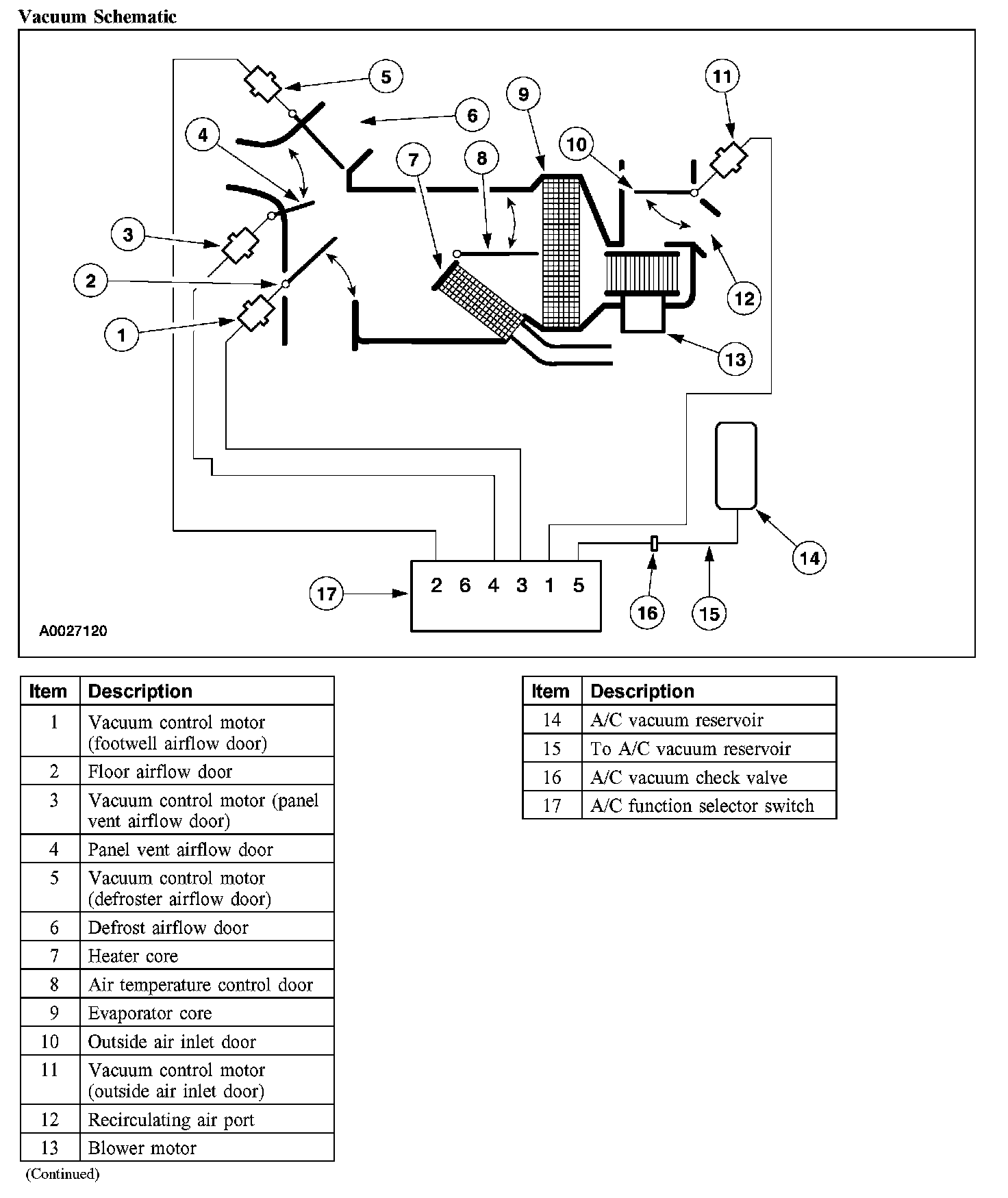

Vacuum Schematic:

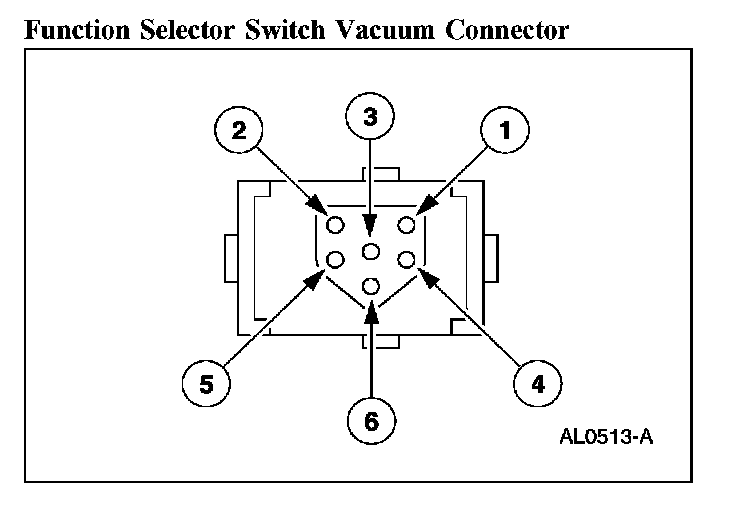

Function Selector Switch Vacuum Connector:

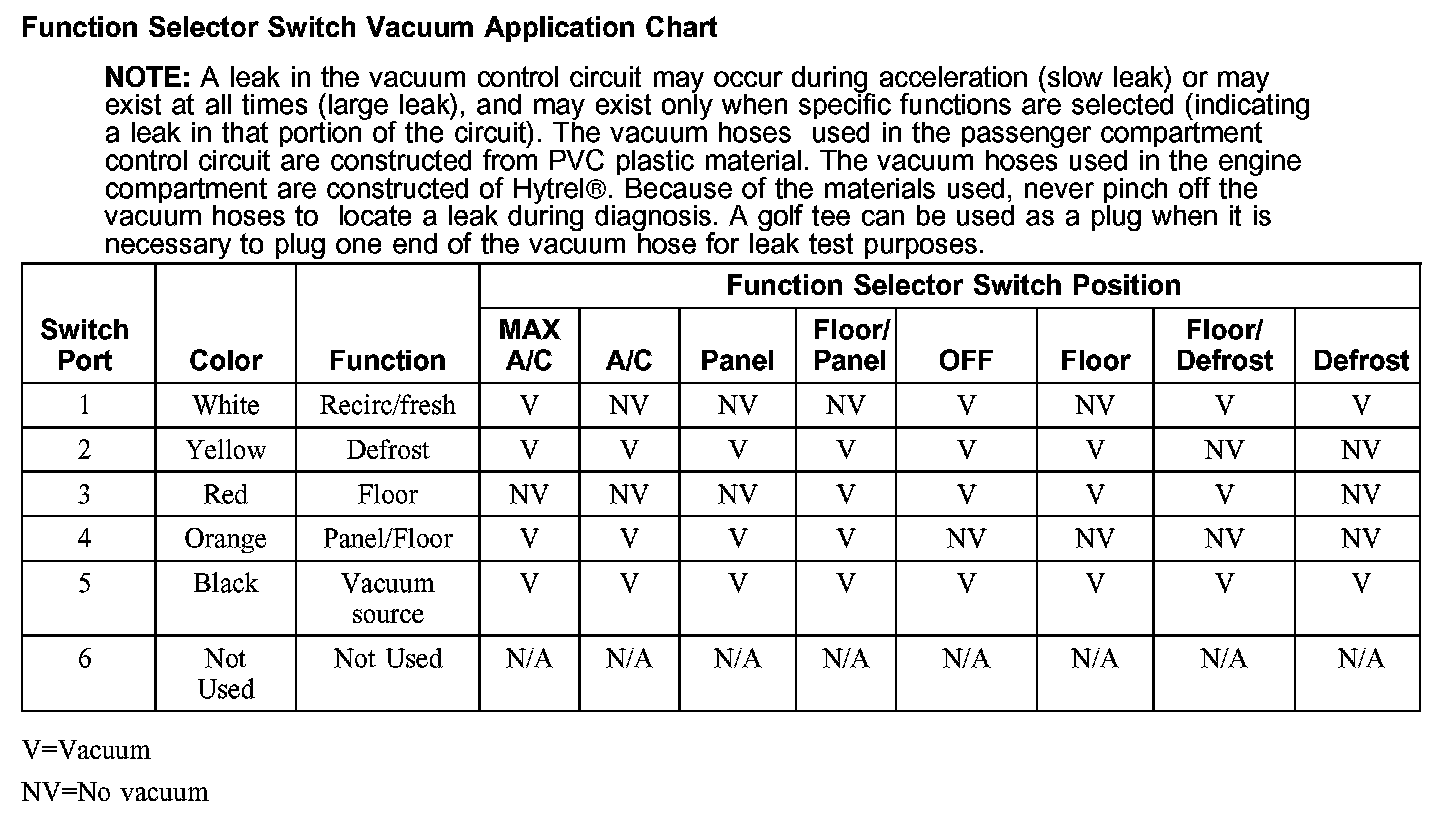

Function Selector Switch Vacuum Application Chart:
