Cabin Air Filter / Purifier: Service and Repair

CABIN AIR FILTER







Removal and Installation

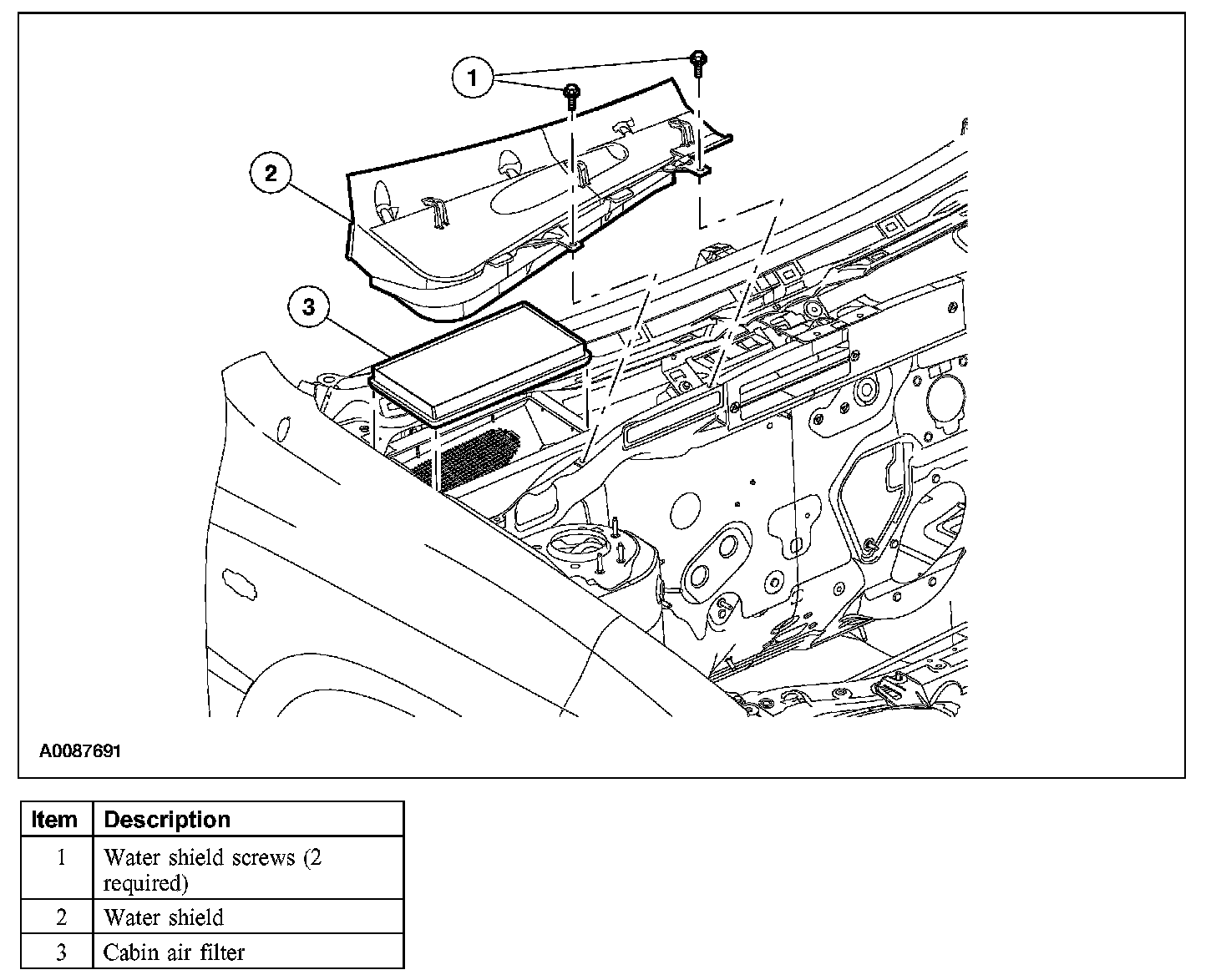

1. Remove the RH cowl panel grille.
2. Remove the 2 water shield screws and the water shield.
3. Remove the cabin air filter.
4. To install, reverse the removal procedure.
