Injector Connector Pin Numbers and Test Pins
Injector Connector Pin Numbers and Test Pins

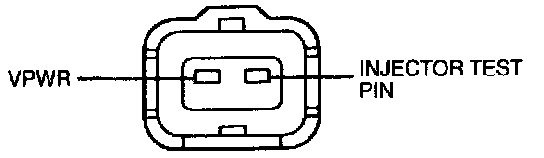

Connector View:

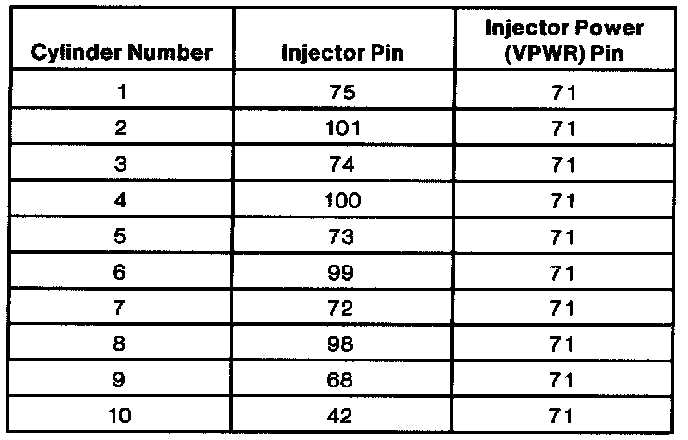

Injector Connector Test Pin Numbers:
