Mercury Truck
>>
1998
>>
Mountaineer V8-302 5.0L VIN P EFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
Computers and Control Systems
>>
Information Bus
Information Bus

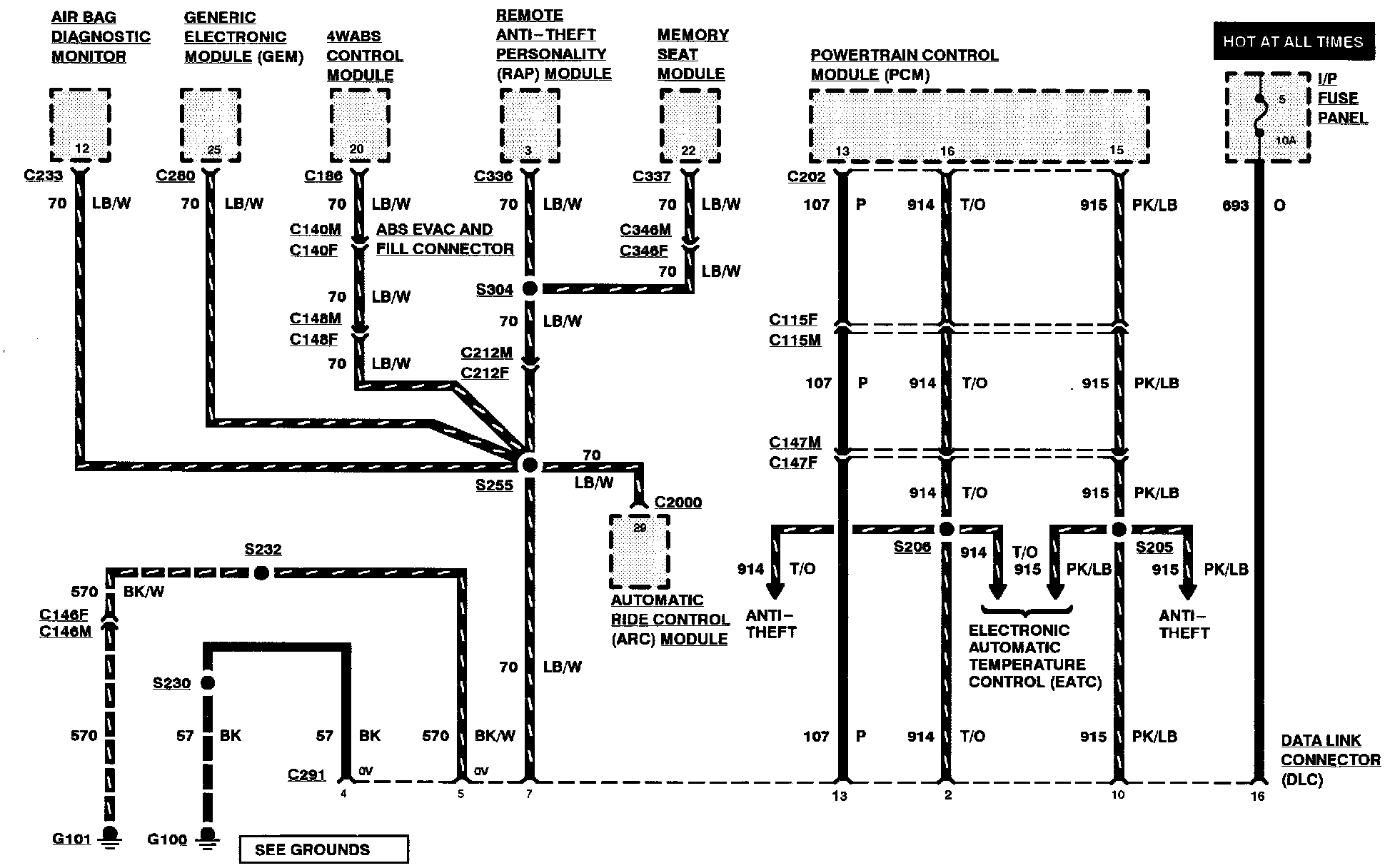

Multiplex Communication Network:
