Mercury Truck
>>
1998
>>
Mountaineer V8-302 5.0L VIN P EFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Charging System
Charging System

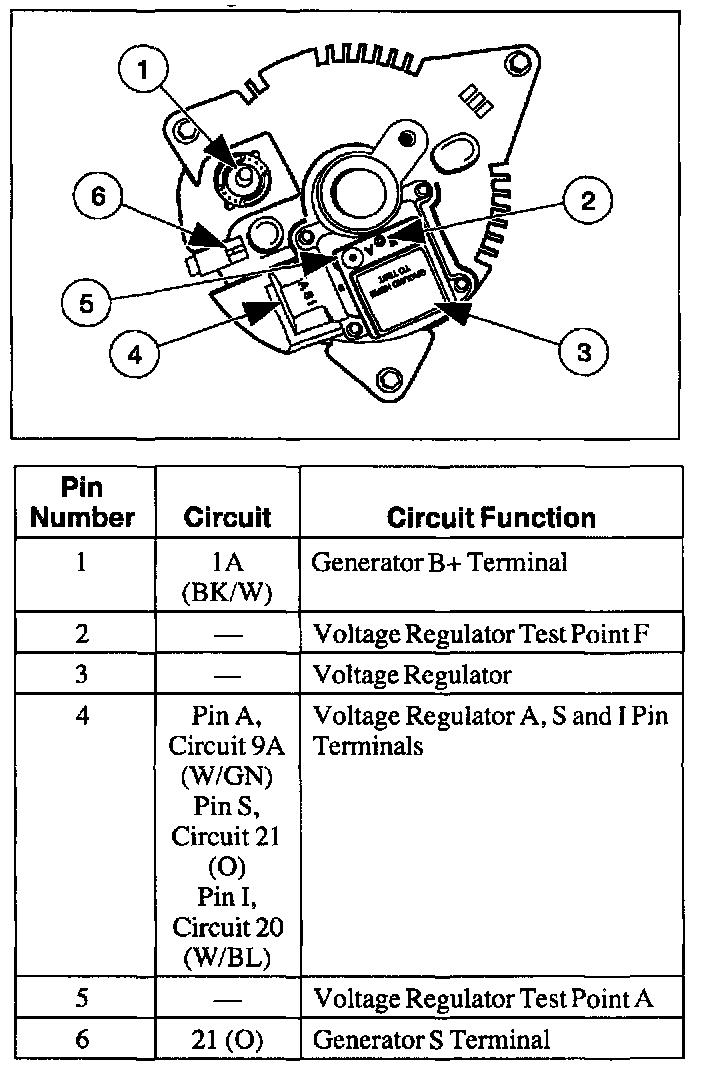

Connector Locations:

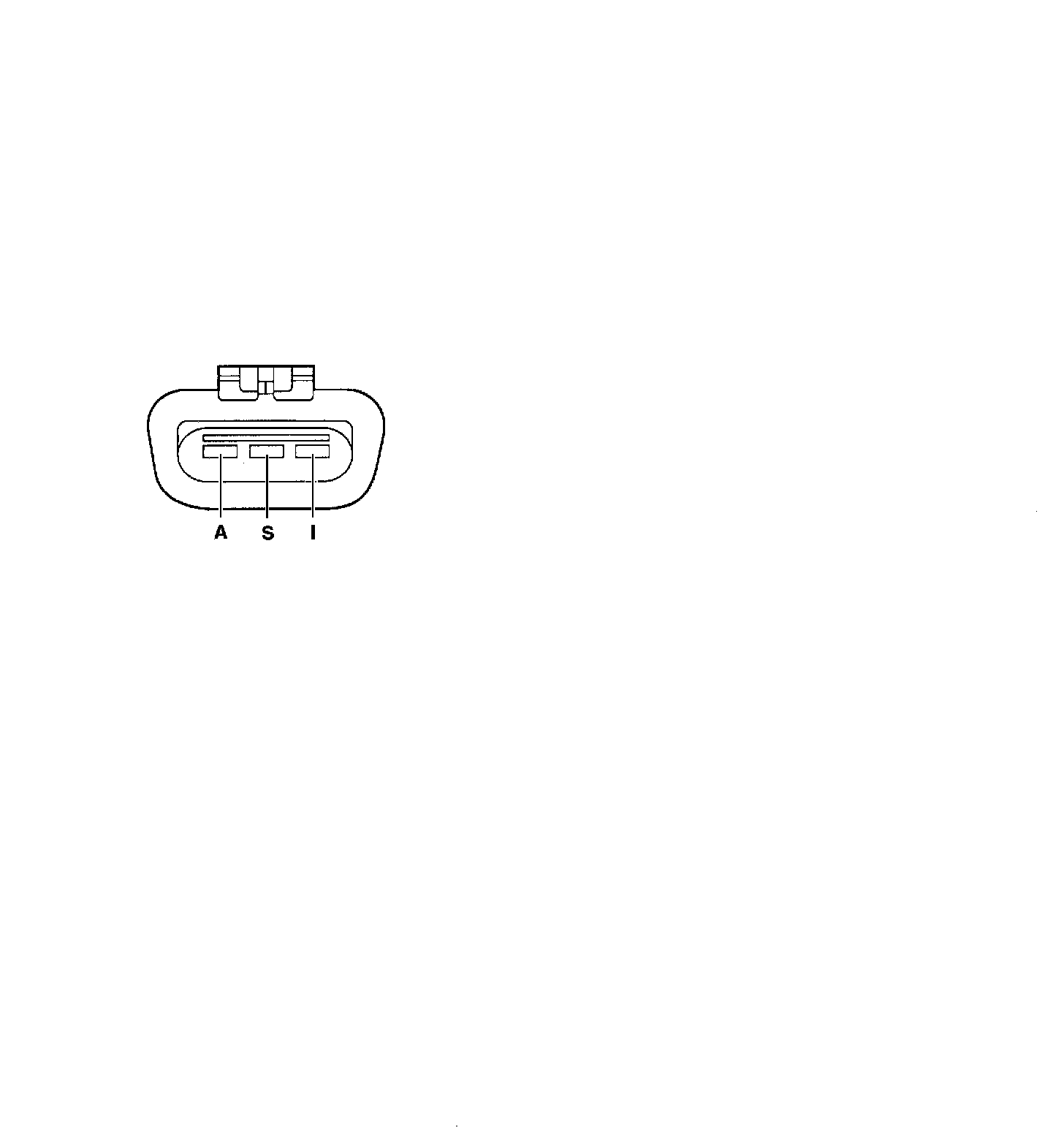

View Looking Into Harness Connector:
