Home >> Mercury Truck >> 1998 >> Mountaineer V8-302 5.0L VIN P EFI >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Pinpoint Tests >> G Check ABS Control Module

G Check ABS Control Module

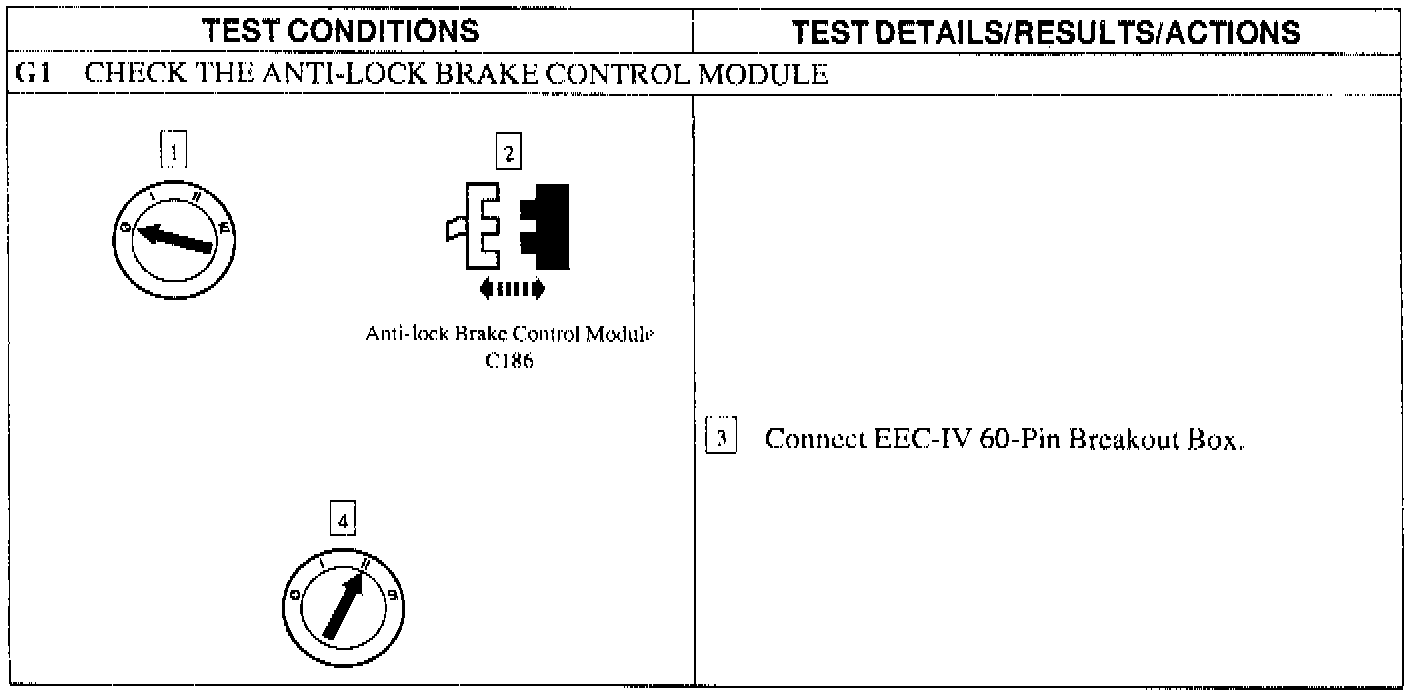

Test G1:

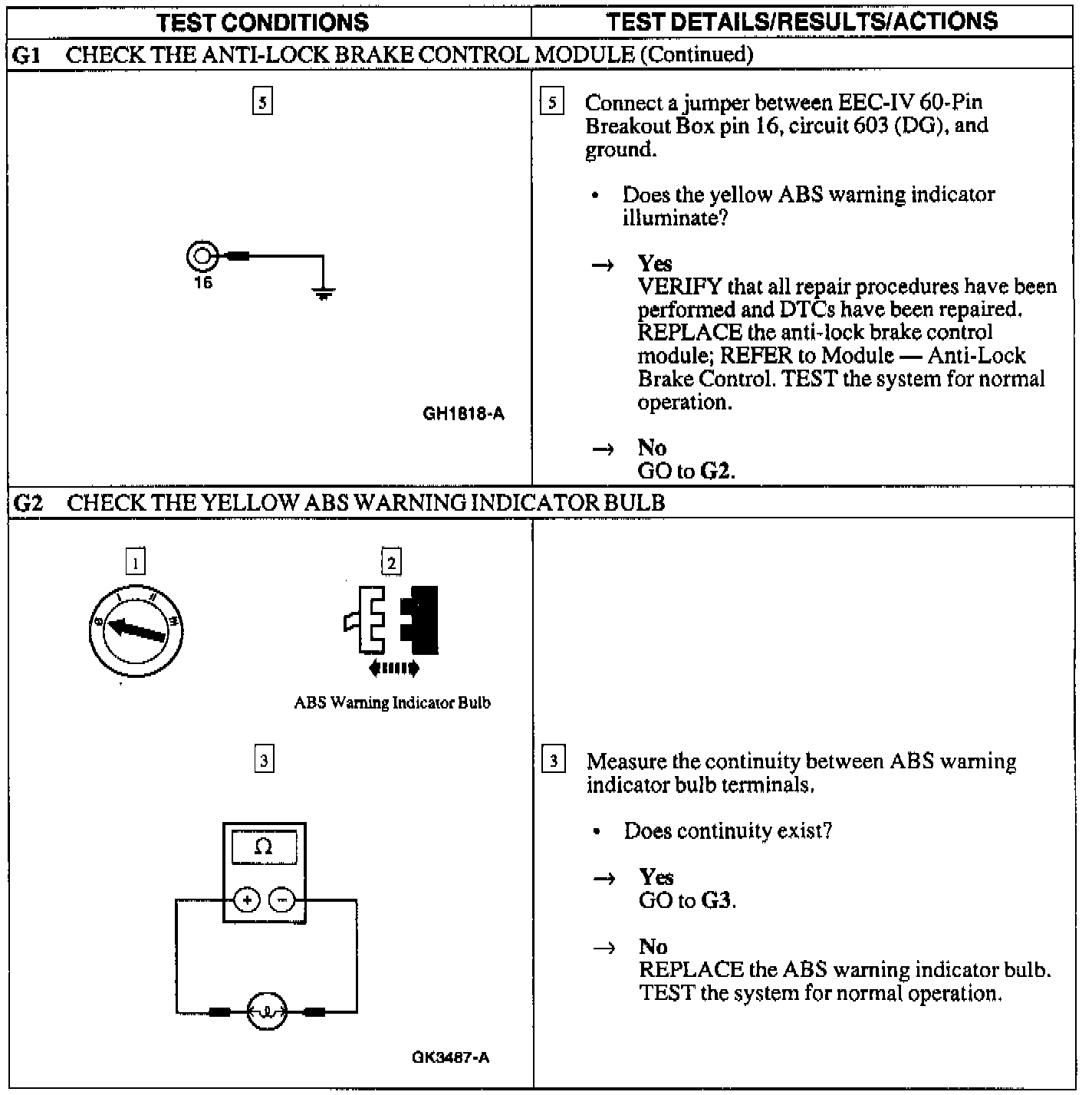

Test G1 - G2:

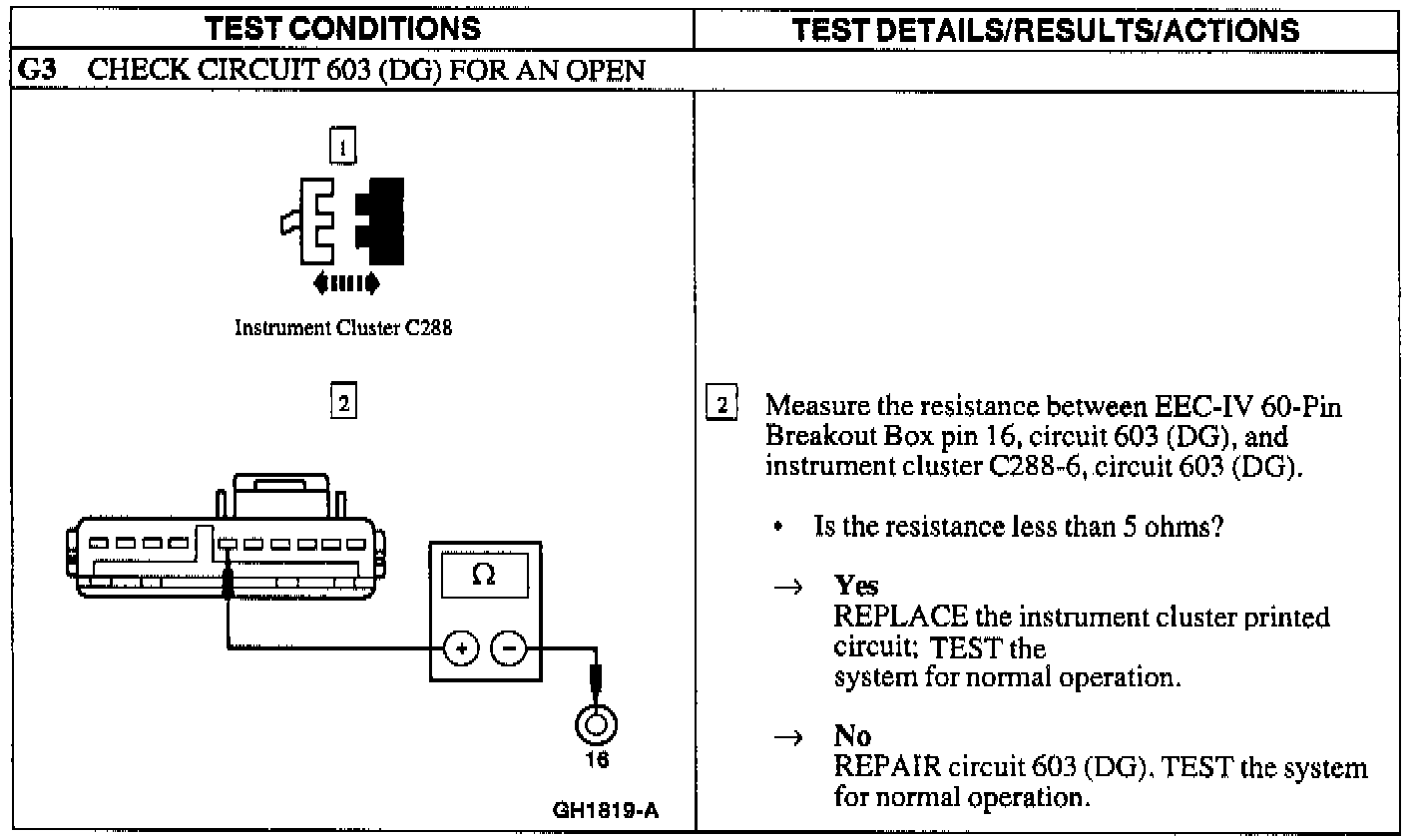

Test G3:
