Rectifier Diode / Bridge: Testing and Inspection

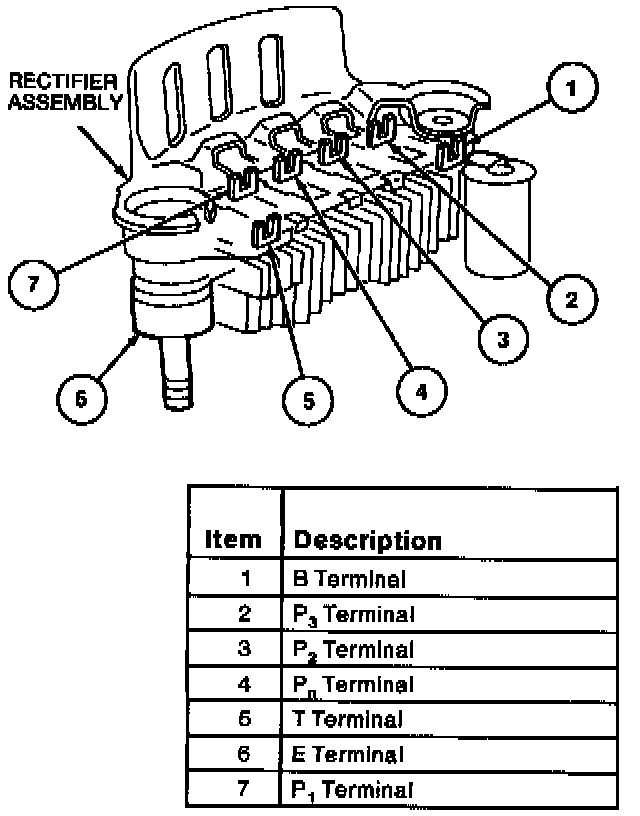

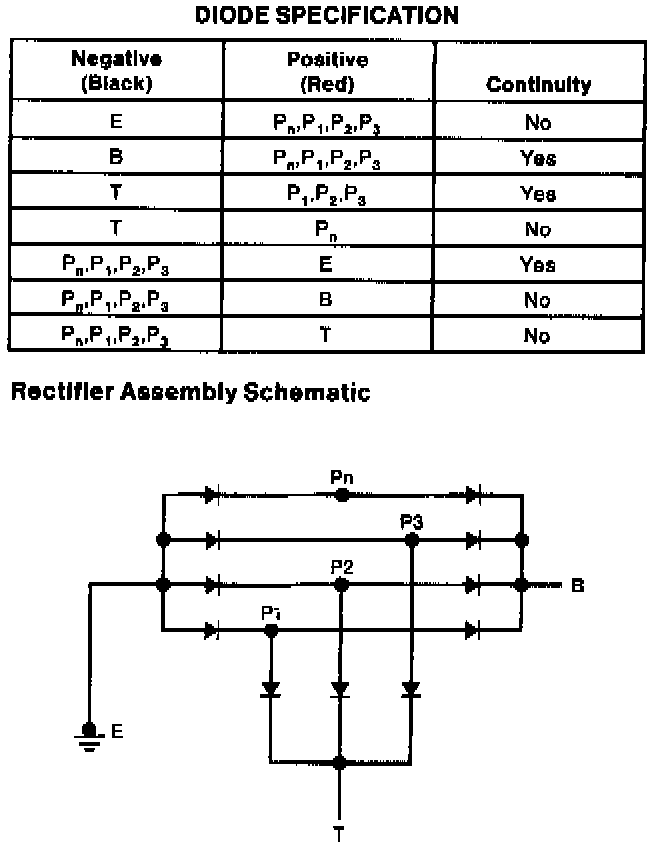

RECTIFIER1. Use Rotunda 73 Digital Multimeter 105-R0051 or equivalent in the diode test mode to check for continuity between the following terminals of the rectifier.
2. If the rectifier fails any of the continuity checks, replace the rectifiers.
