Home >> Mercury Truck >> 1997 >> Villager V6-181 3.0L SOHC VIN 1 EFI >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Lighting and Horns >> Trailer Lighting Module >> Diagrams

Trailer Lighting Module: Diagrams

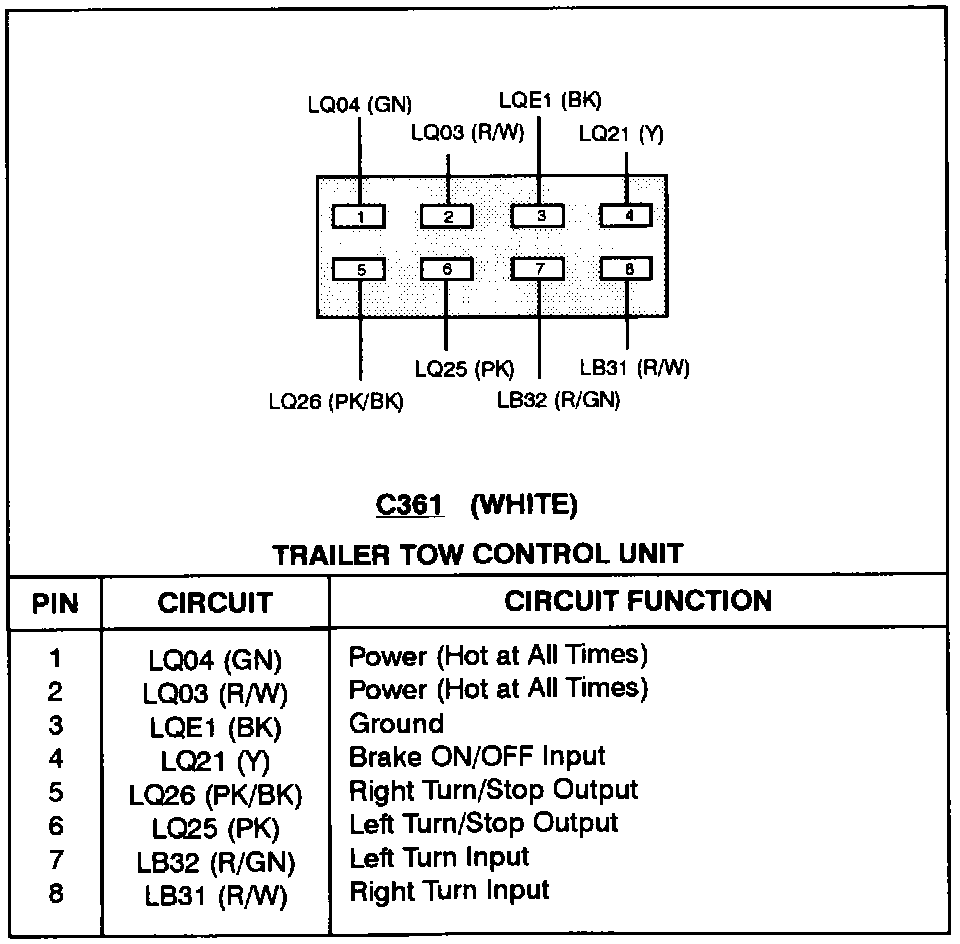

Trailer Tow Control Unit:
