Fuel Gauge Module: Service and Repair

Removal
1. Remove the instrument cluster.

CAUTION: Electronic modules are sensitive to static electrical charges. If exposed to these charges, damage may result.

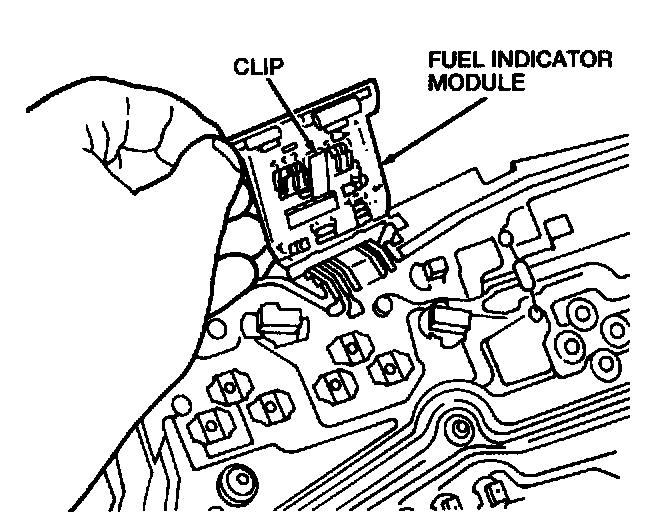

2. Depress the clip on the fuel indicator module and remove the fuel indicator module.

Installation
To install, reverse the removal procedure.
