Brake Load Sensor Shields

REMOVAL

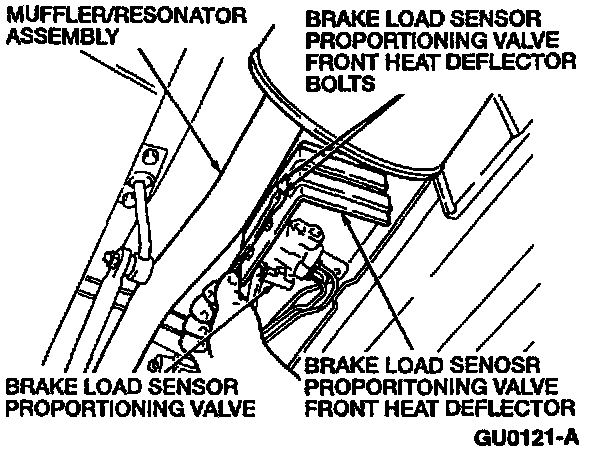

1. Remove the two brake load sensor proportioning valve front heat deflector bolts.





2. Remove the brake load sensor proportioning valve front heat deflector.

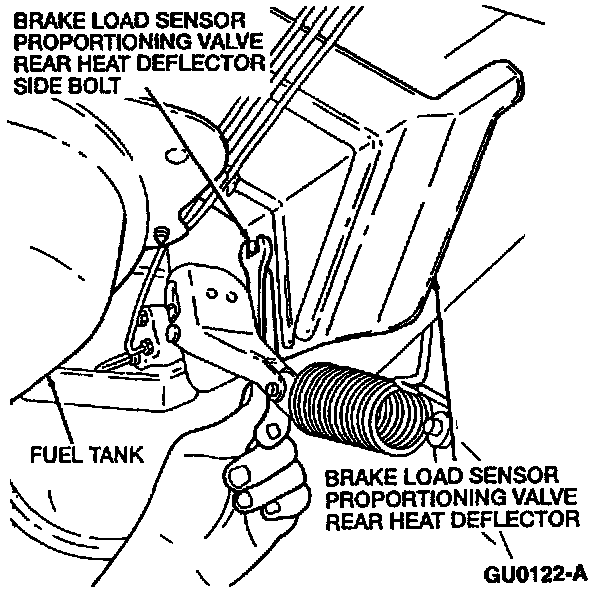

3. Remove the brake load sensor proportioning valve rear heat deflector side bolt.

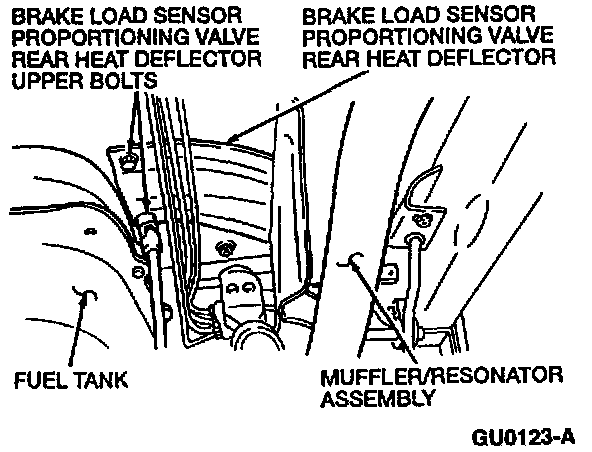

4. Remove the two brake load sensor proportioning valve rear heat deflector upper bolts.





5. Remove the brake load sensor proportioning valve rear heat deflector.

INSTALLATION

To install, reverse the removal procedure.
- Tighten the brake load sensor proportioning valve rear heat deflector side bolt to 20-25 Nm (15-18 lb-ft).
- Tighten the brake load sensor proportioning valve rear heat deflector upper bolts to 43-55 Nm (32-40 lb-ft).
- Tighten the brake load sensor proportioning valve front heat deflector bolts to 20-25 Nm (15-18 lb-ft).
