Rear Climate Control Assembly, Rear Blower Switch
REAR CLIMATE CONTROL ASSEMBLY, REAR BLOWER SWITCH1. Key OFF.
2. Disconnect the rear blower switch C312 at the rear climate control assembly.

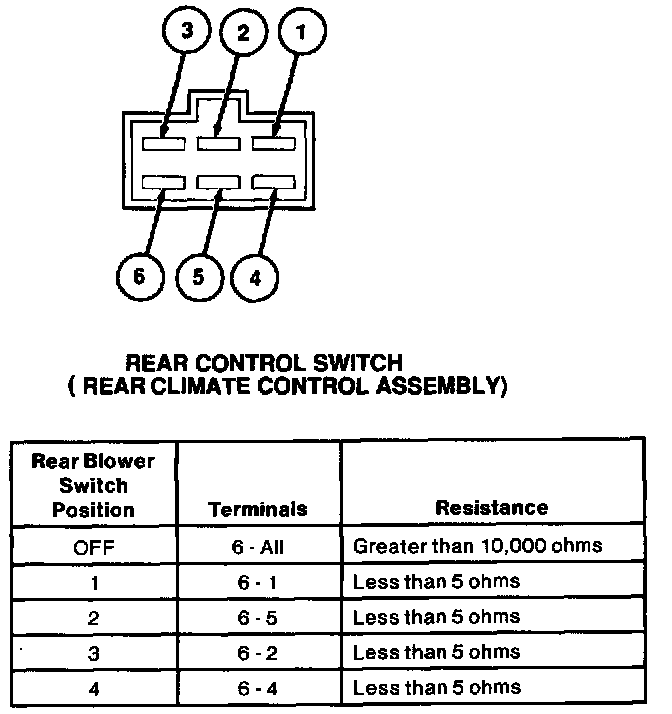

3. Measure the resistance between the terminals on the rear blower switch at the rear climate control assembly.
4. If the resistances are not as specified. then replace the rear blower switch at the rear climate control assembly. Otherwise, return to the pinpoint tests.
