Front Climate Control Assembly, Rear Control Switch
FRONT CLIMATE CONTROL ASSEMBLY, REAR CONTROL SWITCH1. Key OFF
2. Disconnect the rear control switch C205 at the front climate control assembly.

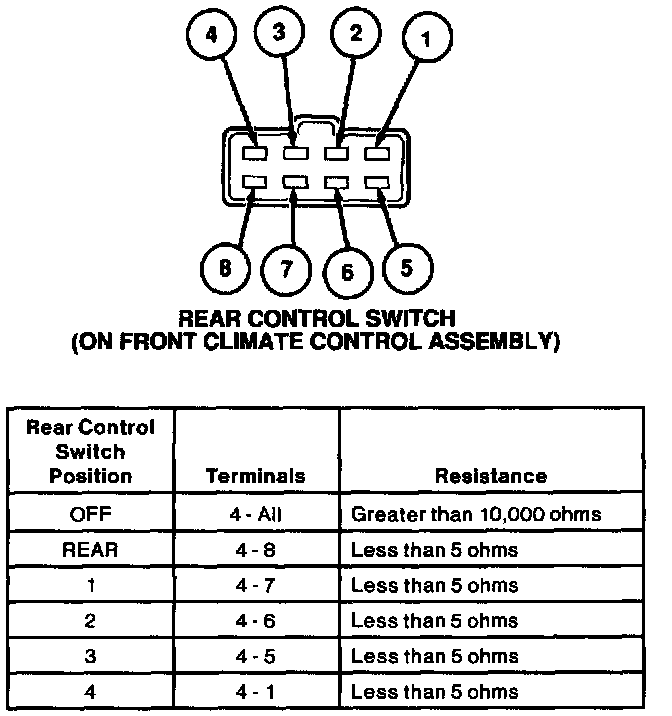

3. Measure the resistance between the terminals on the rear control switch at the front climate control assembly as indicated.
4. If the resistances are not as specified, then replace the rear control switch at the front climate control assembly. Otherwise, return to the pinpoint tests.
