Temperature Control Switch

REMOVAL
1. Remove the climate control assembly.

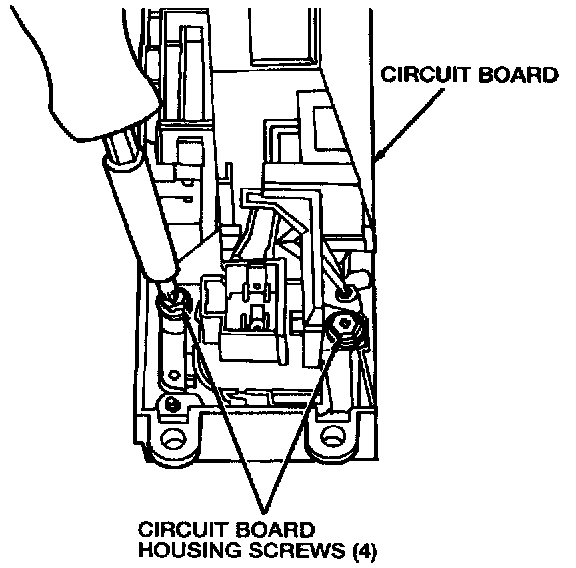

2. Remove the four circuit board housing screws.

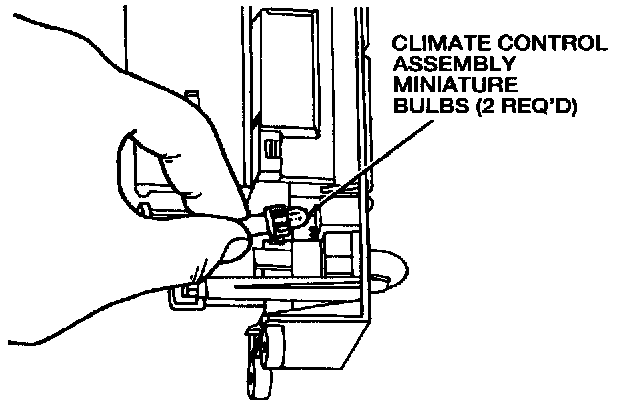

3. Remove the two climate control assembly miniature bulbs from the climate control assembly.

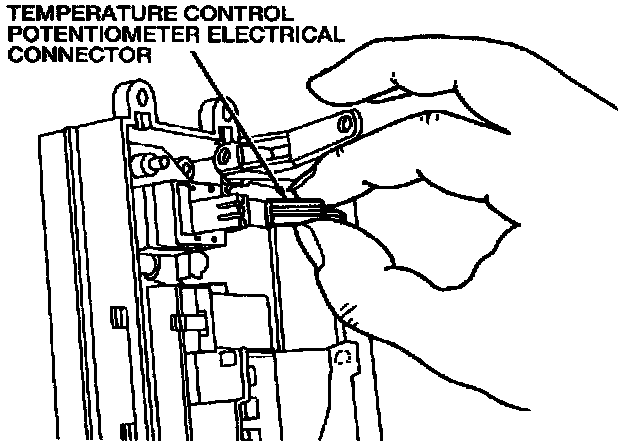

4. Disconnect the temperature control potentiometer electrical connector.

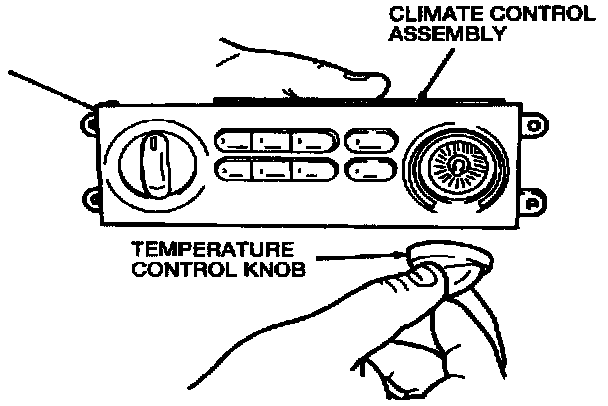

5. Remove the temperature control knob.

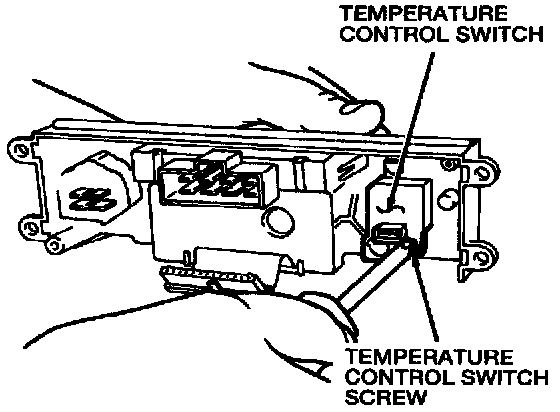

6. Remove the temperature control switch screw.

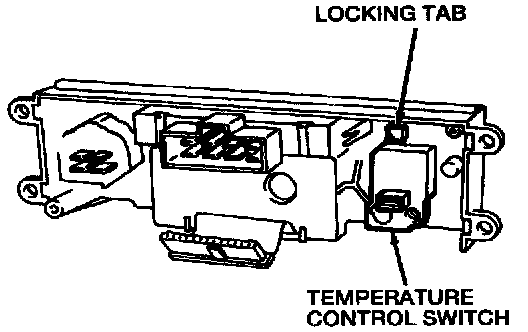

7. Rotate the temperature control switch counterclockwise to clear locking tab and remove the temperature control switch.

INSTALLATION
1. To install, reverse the removal procedure.
