Rear Control Switch

REMOVAL
1. Remove the climate control assembly.

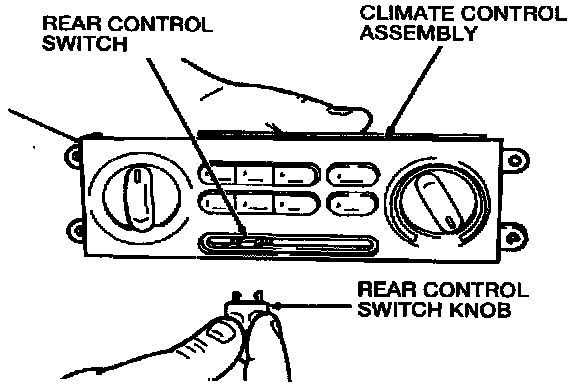

2. Remove the rear control switch knob.

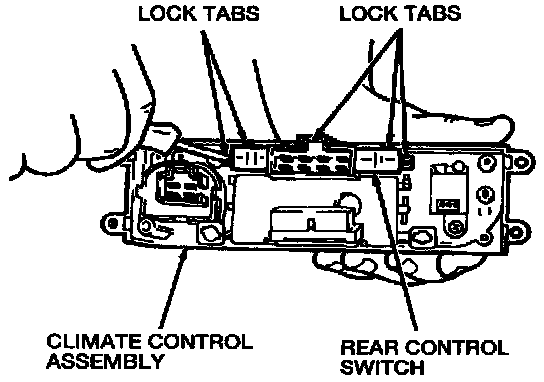

3. Unlatch the five lock tabs and remove the rear control switch from the climate control assembly.

INSTALLATION
1. To install, reverse the removal procedure.
