Climate Control Assembly Bulbs

NOTE: The climate control assembly illumination bulbs are referred to as miniature bulbs.

REMOVAL
1. Remove the climate control assembly.

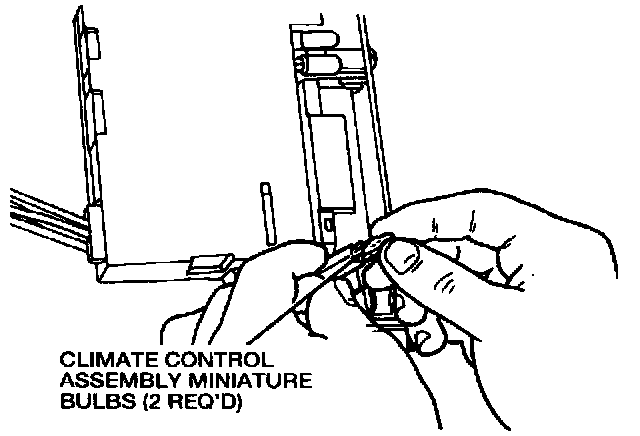

2. Twist and pull the two climate control assembly miniature bulb sockets from the climate control assembly.







3. Pull to remove the two climate control assembly miniature bulbs from the sockets.

INSTALLATION
1. To install, reverse the removal procedure.
