Climate Control Assembly Bulbs

REMOVAL
1. Remove the climate control assembly.

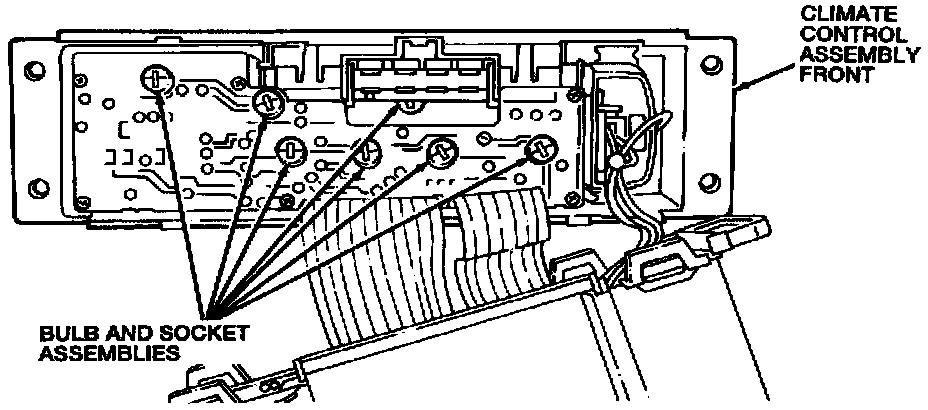

2. Release the tabs and separate the climate control assembly front from the assembly.
3. Using a small screwdriver, twist the bulb and socket and remove.

INSTALLATION
1. To install, reverse the removal procedure.
