Rear Climate Control Panel Illumination Bulbs

REMOVAL
1. Disconnect the battery ground cable.
2. Use an appropriate trim tool to pry the rear climate control assembly from the LH quarter trim panel.
3. Disconnect the rear climate control assembly electrical connectors.

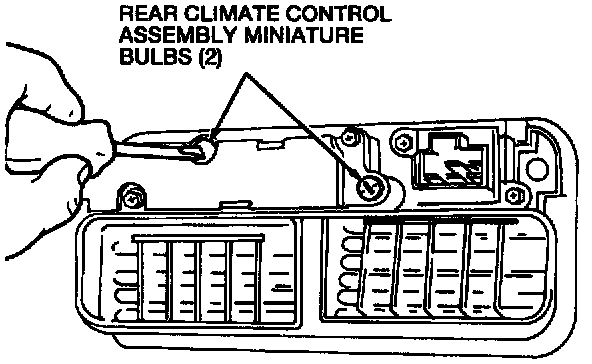

4. Unscrew the two rear climate control assembly miniature bulbs.

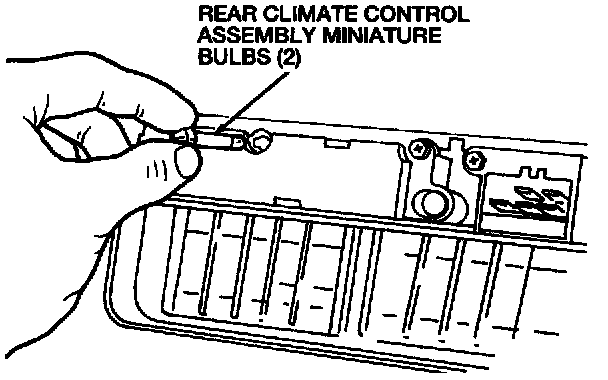

5. Remove the two rear climate control assembly miniature bulbs from the rear climate control assembly.

INSTALLATION
1. To install, reverse the removal procedure.
